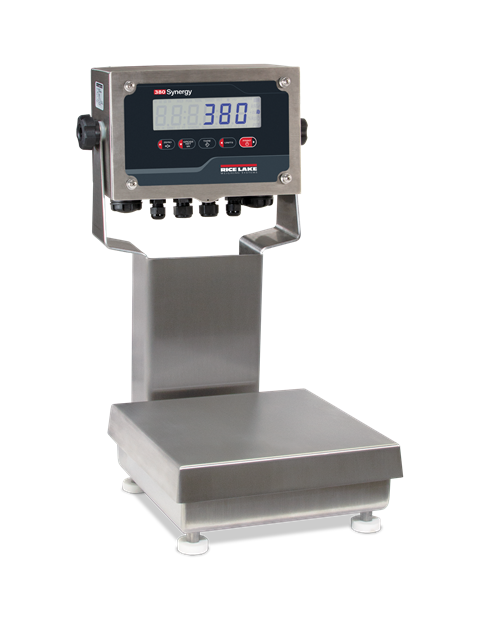

Ready-n-Weigh Bench Scale System CW-90XB Scale Base 380 Indicator

$0.00

Download product PDF
Category:

Features

  • Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
  • Factory calibrated with indicator setup and configured for 5,000 divisions
  • Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with a removable top cover for ease of cleaning
  • Powered by four alkaline C-cell batteries (not included) or external AC adapter (not included)
  • Standard RS-232 serial port for connecting to a variety of peripherals

Specifications

Load Cell, NTEP Certified:
IP69K stainless steel and hermetically sealed

Scale Construction:
304 stainless steel

Maximum Overload:
180% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

 Scale Frame:
AISI304L, straight line finish, Ra = 45 +/- 10

Scale Cover:
AISI304L, straight line finish, Ra = 45 +/- 10

Cable Length:
34 in



 Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Approvals:
NTEP 95-072, Class III 5,000 d
Measurement Canada AM-5082
Load cell is FM approved

Warranty:
Three-year limited (includes water ingress)
Power:
Batteries: Four alkaline C-cell
Optional: 115/230 VAC to 12 VDC adapter

Battery Life:
100 hours on alkaline batteries with one 350 ohm load cell, no backlight

Communication Ports:
One RS-232 (three-wire)
One USB 2.0

 Display:
Six 1-inch tall, LCD digits

Status Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Keys/Buttons:
5 tactile buttons

 Rating/Material:
Enclosure: IP66, 304 Stainless steel

Approvals:
NTEP 21-051
Measurement Canada AM-6184
CE Marked
cULus Listed

Warranty:
Two-year limited

Options

208543 Scale PKG, CW-90XB-380 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST
208544 Scale PKG, CW-90XB-380 10×10 10 lb/5 kg with 12 inch column 115VAC SST
208545 Scale PKG, CW-90XB-380 10×10 25 lb/10 kg with 12 inch column 115VAC SST
208546 Scale PKG, CW-90XB-380 12×12 25 lb/10 kg with 12 inch column 115VAC SST
208547 Scale PKG, CW-90XB-380 12×12 50 lb/25 kg with 12 inch column 115VAC SST
208548 Scale PKG, CW-90XB-380 12×12 100 lb/50 kg with 12 inch column 115VAC SST
