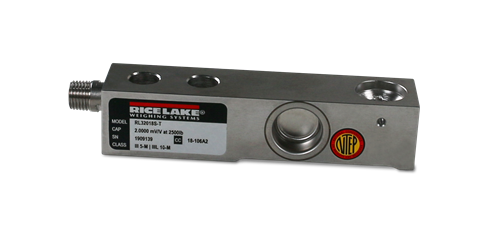

Rice Lake RL32018S-T Stainless Steel, Single-Ended Beam Load Cell

$0.00

Replacement for the RL30745 load cell used in RLTM weigh modules and for the Mettler Toledo Model 745. Complete with 15 ft or 30 ft cable. NTEP Certified and FM approved. Capacities available from 500 lb to 10,000 lb.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V ±0.05%
mV/V/ohm calibrationOutput Resistance:
350 (± 3) ohmInput Resistance:
400 (± 20) ohmMaterial/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Hermetically sealed, IP69KSafe Overload:
150% full scaleRated Excitation:
5 to 10 VDCCombined Error:
0.017% full scale

Insulation Resistance:
5,000 megohm

 Cable Length:
15 ft
30 ftCable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –SignalWarranty:
Two-year limitedApprovals:
cFMus
NTEP 18-106

Options

15ft Cable

189189 Load Cell,SEB RL32018S-T 500lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
189190 Load Cell,SEB RL32018S-T 1250lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
189191 Load Cell,SEB RL32018S-T 2500lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
189192 Load Cell,SEB RL32018S-T 5000lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
189193 Load Cell,SEB RL32018S-T 10000lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69



30ft Cable

191974 Load Cell,SEB RL32018S-T 500lb 30ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
191975 Load Cell,SEB RL32018S-T 1250lb 30ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
191976 Load Cell,SEB RL32018S-T 2500lb 30ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
191977 Load Cell,SEB RL32018S-T 5000lb 30ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
191978 Load Cell,SEB RL32018S-T 10000lb 30ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69
