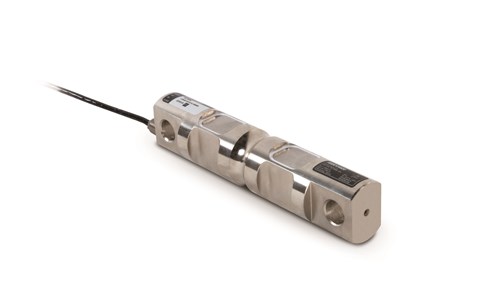

Rice Lake RL72020 Alloy Steel, Double Ended Beam Load Cell

$0.00

An alloy steel, double-ended beam load cell ideal for truck, tank and hopper applications. Complete with 30 ft of load cell cable and available in capacities of 5,000 lb to 250,000 lb.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/VOutput Resistance:
700 (± 5) ohmInput Resistance:
5 to 10 k: 700 (± 14) ohm
20 to 150 k: 770 (± 10) ohm
200 to 250 k: 700  (± 14) ohmMaterial/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

 Safe Overload:
150% full scaleSafe Sideload:
100% full scaleRated Excitation:
5 to 10 VDC (15 V maximum)Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
5,000 lb: 0.02 in
10,000 lb: 0.025 in
20,000 lb: 0.042 in
30,000 to 50,000 lb: 0.02 in
60,000 lb: 0.025 in
100,000 lb: 0.02 in

 Cable Length:
30 ftCable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –SignalWarranty:
Two-year limitedApprovals:
cFMus
NTEP 21-064

Options

NTEP Certified

201758 Load Cell,DEB RL72020-5k 5000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67
201759 Load Cell,DEB RL72020-10k 10000lb 30ft 3mv/v 700 Alloy Ohm WW NTEP III 5M IIIL 10M FM IP67
201760 Load Cell,DEB RL72020-20k 20000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67
201761 Load Cell,DEB RL72020-30k 30000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67
201762 Load Cell,DEB RL72020-40k 40000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67
201763 Load Cell,DEB RL72020-50k 50000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67
201764 Load Cell,DEB RL72020-60k 60000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67

201765 Load Cell,DEB RL72020- 100000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67

201766 Load Cell,DEB RL72020- 150000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67

201767 Load Cell,DEB RL72020- 200000lb 30ft 3mv/v 700 Ohm Alloy WW NTEP III 5M IIIL 10M FM IP67



Non-NTEP Certified

201768 Load Cell,DEB RL72020- 250000lb 30ft 3mv/v 700 Ohm Alloy WW FM IP67
