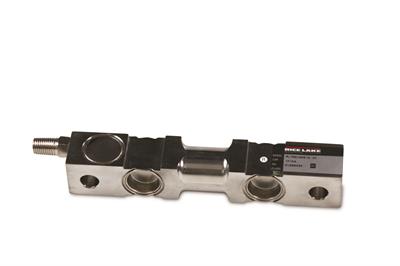

Rice Lake RL75016SS-W Stainless Steel, Double-Ended Beam Load Cell
$0.00
The Rice Lake RL75016SS-W Stainless Steel, Double-Ended Beam Load Cell is designed for tank and hopper applications.
Download product PDF
Specifications
Full Scale Output:
3.0 mV/V
Output Resistance:
700 (? 5) ohm
Input Resistance:
770 (? 10) ohm
Material/Finish:
Stainless steel
Temperature:
Operating range
0? F to 150? F/-18? C to 65? C
Safe Overload:
100% full scale
Rated Excitation:
5-10 VDC (15 V max)
Hysteresis:
0.02% full scale
Linearity:
0.03% full scale
Seal Type:
Welded seal, IP67
Cable Length:
25 ft (7.6 m)
Cable Color Code:
Red ………………….+ Excitation
Black ………………….? Excitation
Green ………………….+ Signal
White ………………….? Signal
Warranty:
Two-year limited warranty
Models
| 168114 |
Load Cell,DEB RL75016SS-W 1k 1000lb 25ft 3mv/v 700/770 ohm IP67 WW SST Welded |
|
|
| 168115 |
Load Cell,DEB RL75016SS-W 5k 5000lb 25ft 3mv/v 700/770 ohm IP67 WW SST Welded |
|
|
| 168116 |
Load Cell,DEB RL75016SS-W 10k 10000lb 25ft 3mv/v 700/770 ohm IP67 WW SST Welded |
|
|
| 168117 |
Load Cell,DEB RL75016SS-W 15k 15000lb 25ft 3mv/v 700/770 ohm IP67 WW SST Welded |
|
|
| 168118 |
Load Cell,DEB RL75016SS-W 20k 20000lb 25ft 3mv/v 700/770 ohm IP67 WW SST Welded |
|
|
| 168119 |
Load Cell,DEB RL75016SS-W 25k 25000lb 25ft 3mv/v 700/770 ohm IP67 WW SST Welded |
|
|
| 168120 |
Load Cell,DEB RL75016SS-W 50k 50000lb 25ft 3mv/v 700/770 ohm IP67 WW SST Welded |
