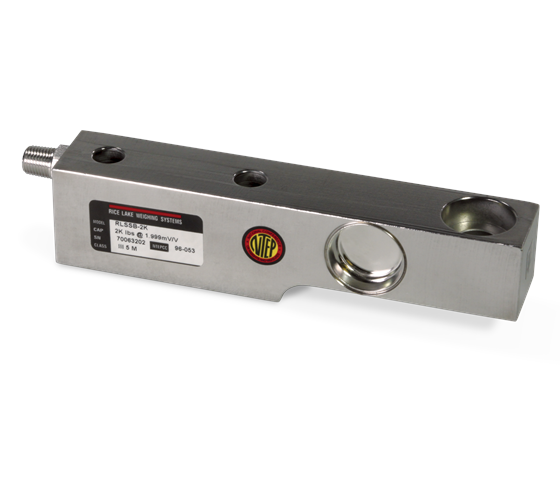

Rice Lake RLSSB Stainless Steel, Single-Ended Beam Load Cell

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02%

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Welded-seal, IP67

Cable Length:
15 ft (4.5 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Green…………………+ Excitation
Black………………….? Excitation
White …………………+ Signal
Red ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP
