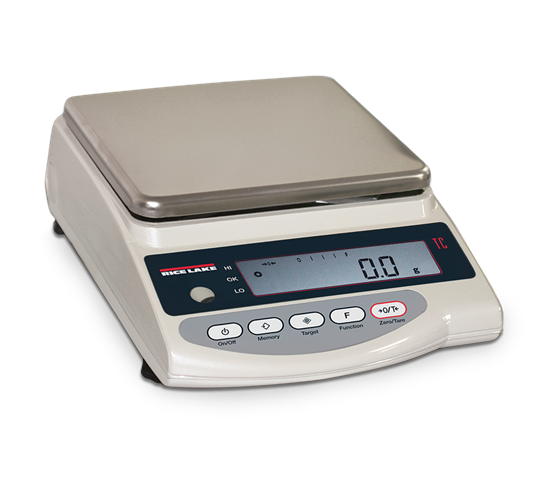

Rice Lake TC Series Tuning Fork Balance

$0.00

TC Series balances are equipped with a unique mono-metal tuning fork sensor (MMTS), bringing remarkable response time and exceptional stability to any setting.

Download product PDF
Categories: ,

Features

  • Large, 16.5 mm-high, backlit liquid crystal display (LCD)
  • Selectable modes: Weight, Unit Count and Percentage
  • 12 units of measurement
  • Mono-metal tuning fork sensor (MMTF) provides quick response and stability
  • 20-step bar graph display
  • 115 VAC adapter included (230 VAC optional)
  • Semi-automatic calibration, external weight
  • Plastic housing on models <1000 g, plastic top and die cast bottom on models >1000 g

Specifications

TC-620 TC-1200 TC-4200 TC-6200
Part # 107232 107233 107234 107235
Capacity 620 g 1,200 g 4,200 g 6,200 g
Resolution 0.01 g 0.1 g 0.1 g 0.1 g
Operating Modes Count, Percentage, Limit Function (checkweighing)
Repeatability 1 division
Linearity 1 division
Operating Temperature 41° F to 95° F (5° C to 35° C)
Pan Size Ø 5.5 in
(139.7 mm)		 6.7 in x 5.6 in
(170.2 x 142.2 mm)		 7 in x 6.2 in
(177.8 x 157.5 mm)
Dimensions 9.2 x 7.1 x 2.9 in
(234 x 180 x 74 mm)		 10.4 x 7.5 x 3.4 in (264 x 191 x 86 mm)
Weight (Approx.) 2.9 lb (1.3 kg) 5.9 lb (2.7 kg)
Calibration Weight 600 g 1,200 g 4,000 g 6,200 g
Power 120 VAC adapter
Warranty Five-year limited warranty
Return Policy Rice Lake Standard Policy
UNIT OF MEASURE
Decimal Ounce 21 x 0.0005 oz 42 x 0.005 oz 140 x 0.005 oz 210 x 0.005 oz
Decimal Pound 1.3 x 0.00005 lb 2.6 x 0.0005 lb 9.2 x 0.0005 lb 13 x 0.0005 lb
Troy Ounce 19 x 0.0005 ozt 38 x 0.005 ozt 130 x 0.005 ozt 190 x 0.005 ozt
Pennyweight 390 x 0.01 dwt 770 x 0.1 dwt 2700 x 0.1 dwt 3900 x 0.1 dwt
Carat 3100 x 0.05 ct 6000 x 0.5 ct 21000 x 0.5 ct 31000 x 0.5 ct
Momme 160 x 0.005 mom 320 x 0.05 mom 1100 x 0.05 mom 1600 x 0.05 mom
Grain Unit 9500 x 0.2 GN 18000 x 2 GN 64000 x 2 GN 95000 x 2 GN
Tael (Hong Kong) 16 x 0.0005 TL 32 x 0.005 TL 110 x 0.005 TL 160 x 0.005 TL
Tael (Singapore, Malaysia, Taiwan) 16 x 0.0005 TL 31 x 0.005 TL 110 x 0.005 TL 160 x 0.005 TL
Tola 53 x 0.001 to 100 x 0.01 to 360 x 0.01 to 530 x 0.01 to

Options

107236 Battery, Rechargeable TC-620 and TC-1200, 32 Hour Run time, 12 Hour Charge time
107237 Battery, Rechargeable TC-4200, TC-6200, TP-3200 and TP-8200, TP-12K 32 Hour Run time Nickel Cadmium, 12 hour charge time
107238 Balance OPT,RS-232 Bi-Directional, DIN-5 Pin Connector (TC-620, TC-1200) Not compatible with Battery Option
107239 Balance OPT, RS-232 Bi-Directional (TC-4200 and TC-6200) DIN-5 Pin Connector Not Compatible with Battery Option
109236 Hook,Underweighing TS & TP-220 and TP-820 Balance
109292 Hook,Underweigh 2200-12K Rice Lake, TC and TP
42566 Pwr Supply,Adapter 60Hz 4.5W Input 12VDC/1.0A 2.1×5.5x11mm Female Output QB MB QBG Balance QBX Counting Scale Class 2 Transformer for Model UM124 100 to 240 VAC
42168 Adapter,230 Volt EU Plug QB MB TC AND TP Series Balance
107243 LIT,Manual Operating TC Balance
75351 Software,WinWedge 32 Std TAL
115303 Cable,RS-232 5-Pin DIN to DB9 Female
115148 LIT,Manual RS232 Option TC Balance RS-232 Option Operator Manual
107250 Cover,In-use 2200g to 12K TC or TP Balance
107240 Cover,In-Use Dust Small TC or TP Balance, 220g to 1200g

Models

107232 Balance,TC-620 Rice Lake 620 G x 0.01G, 5.5IN Pan, 120VAC
107233 Balance,TC-1200 Rice Lake, 1200G x 0.1G, 6.6 x 5.5IN Pan, 120VAC
107234 Balance,TC-4200 Rice Lake, 4200 G x 0.1G, 7 x 6.2IN Pan, 120VAC
107235 Balance,TC-6200 Rice Lake, 6200 G x 0.1G, 7 x 6.2IN Pan, 120VAC
