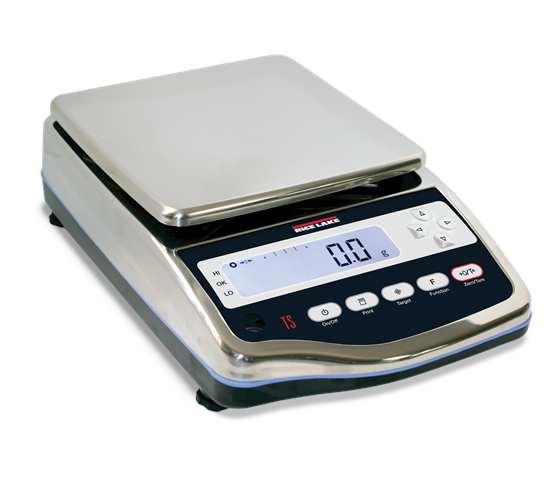

Rice Lake TS Series Precision Tuning Fork Balance

$0.00

Rice Lake’s TS Series tuning fork balance delivers high-speed response time with stable and reliable results.

Download product PDF
Category:

Features

  • Stainless steel, IP65 top housing
  • Large, 18 mm liquid crystal display (LCD) with blacklight
  • Selectable modes
  • 13 units of measurement
  • Mono-metal tuning fork sensor (MMTS) provides quick response and stability
  • Washdown with IP65 rating
  • 115 VAC adapter included (230 VAC optional)
  • Semi-automatic calibration, external weight
  • RS-232 bidirectional

Specifications

TS-620 TS-6200 TS-8200
* Calibration of balance does not require weight of full capacity (adjustable)
Part # 108156 108157 112182
Capacity 620 g 6,200 g 8,200 g
Resolution 0.01 g 0.1 g 0.1 g
Operating Modes Counting, Percentage, Limit Function (Checkweighing), Weighing Multiplied by Coefficient, Specific Gravity, Animal Weighing,
Adding Multiple Measurements
Repeatability 1 division
Linearity 1 division
Operating Temperature 0° C to 40° C 80% RH or less
Pan Size Ø 140 mm (5.51 in) 190 x 190 mm (7.48 X 7.48 in)
RS-232 Specifications Baud rate – 1200/2400/4800/9600/19200, Data bits 8/7; Connector – 9-Pin D-Sub M (not IP65 unless using PN 109238 cable)
Dimensions 12.2 x 8.2 x 3.4 in (310 x 208 x 87 mm)
Weight (Approx.) 10 lb (4.5 kg)
Calibration Weight* 600 g 6,000 g 8,000 g
Power 120 V AC adapter
Battery Option Field installable, uses 4 AA dry cell batteries
Warranty Five-year limited warranty
Return Policy Rice Lake Standard Policy
UNIT OF MEASURE
Decimal Ounce 21 x 0.0005 oz 210 x 0.005 oz 280 x 0.005 oz
Decimal Pound 1.3 x 0.00005 lb 13 x 0.0005 lb 18 x 0.0005 lb
Troy Ounce 19 x 0.0005 ozt 190 x 0.005 ozt 260 x 0.005 ozt
Pennyweight 390 x 0.01 dwt 3,900 x 0.1 dwt 5,200 x 0.1 dwt
Carat 3,100 x 0.05 ct 31,000 x 0.5 ct 41,000 x 0.5 ct
Momme 160 x 0.005 mom 1,600 x 0.05 mom 2,100 x 0.05 mom
Grain Unit 9,500 x 0.2 GN 95,000 x 2 GN 120,000 x 2 GN

Options

108499 Adapter,AC 6VDC/MULTI- RANGE (110-230), MULTI-PLUG, TS Balance
72440 Cable,RS232 Straight 25 Pin D SUB Male to 9 Pin D SUB Female, Pinout: 2 to 2, 3 to 3, 5 to 7 G, RTS to DSR, DSR to DTR Cable is 6ft long
22436 Cable,COMM DB9F 9 Pin FEM On One End Stripped And Tinned On Other End 6ft Pin 2 (Brown) Pin3 (Red) pin 5 (Yellow)
66535 Cable,DB9F to DB9F Null Modem Serial Cable 6 Foot
119064 Adapter,Slimline Null Modem, Gender Changer DB9 Female/Female
109236 Hook,Underweighing TS & TP-220 and TP-820 Balance
109238 Cable,Waterproof TS DB9 cable
109050 Manual,Operating TS
112611 LIT,Addendum TS Balance addendum for dry-cell battery on TS Series Balance
112516 Battery OPT, TS Balance Holder,requires 4 AA dry-cell batteries, Battery life 32-hours using backlight or 200 hours backlight off
119919 Cable,AbleCable RS-232 DB9-Male to USB. Keyboard Input for Serial Devices

Models

108156 Balance,TS-620 Stainless 620g x 0.01g
108157 Balance,TS-6200 Stainless 6200g x 0.1g
112182 Balance,TS-8200 Stainless 8200g x 0.1g
