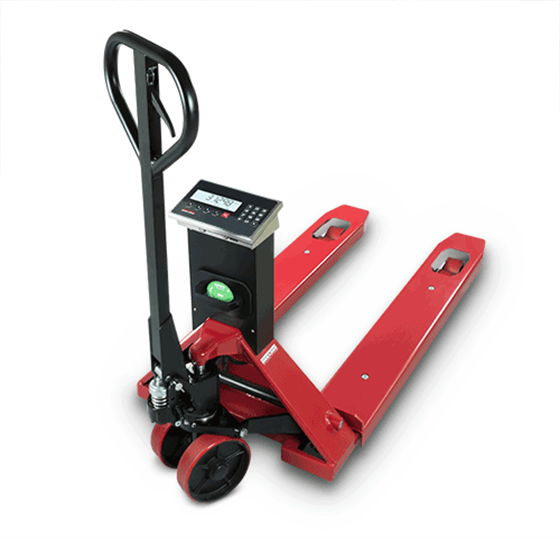

RL-HPJ Hand Pallet Jack Scale


Weigh and transport pallets in one streamlined process with Rice Lake?s RL-HPJ Hand Pallet Jack Scale.

Download product PDF


  • Heavy-gauge steel with a durable powder coat finish
  • Steering wheels and double loading polyurethane rollers
  • Four stainless steel IP68 load cells
  • Weight indicator in IP65 stainless steel water-resistant enclosure
  • Large 1 inch (25 mm) LCD display high contrast digits and waterproof membrane keyboard with 17 functional keys
  • Configuration, calibration and diagnostics from keyboard
  • Rechargeable battery mounted on the pallet jack
  • Battery life is 80 hours of continuous use or one month of non-continuous use
  • Zero and tare functions
  • Net/Gross and lb/kg conversion
  • Accumulation
  • Formulation
  • +/- Checkweighing
  • Percentage weighing
  • Counting (Max. resolution of 1,500,000 divisions)
  • Peak hold
  • Includes a 115VAC 50/60 Hz battery charger


48.75 in x 26.75 in x 3.125 in
(1240 mm x 680 mm x 80?mm)
Approx. 295 lb (134 kg)
Operating Temperature:
14? to 104? F (-10? to 40? C)
Maximum lifting capacity 5,000 lb
? 0.1% of the maximum capacity


Part #185112 Product DescriptionPower Supply, 7.2VDC, 3A RL-HPJ, SLA Battery Charger Mean Well GC30U-11P1J, UL approved, 90-264VAC input
Part #185677 Product DescriptionBattery, Rechargable for use with RL-HPJ.
Part #188259 Product DescriptionKit, RL-HPJ Printer Printer Kit for RL-HPJ pallet jack scale includes: – Roll printer – Date and time option for printer – Battery switch PCB – Connection cables


Part #?183592 Product DescriptionPallet Jack Scale RL-HPJ, 5000 X 1 lb
