RL1855 HE Weigh Modules
$0.00

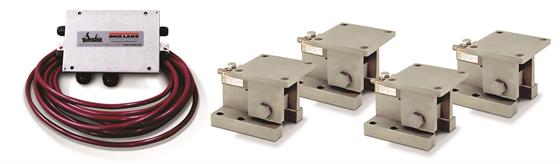

Complete Kit Includes:
- One JB4SS NEMA Type 4X stainless steel signal-trim junction box
- Three or four RL1855 HE stainless steel compression mounts
- Three or four RL35082 stainless steel, welded seal single-ended beam load cells
- 25 ft of our hostile environment EL147HE SURVIVOR load cell cable
Standard Features:
- All stainless steel construction
- Welded-seal, stainless steel load cells, IP67
- NTEP Certified load cells, 5000d, Class III multiple cell
- Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
- Self-checking design with lift-off/tip-over protection
- Two-year limited warranty
Download product PDF
Models
3-Module Kit
| PART # |
PRODUCT DESCRIPTION |
|
|
| 30390 |
Mount Kit,RL1855HE 3EA 1,000 lb SST HE Compression INCL RL35082-N5-1K And JB4SS |
|
| 30388 |
Mount Kit,RL1855HE 3EA 2,500 lb SST HE Compression INCL RL35082-N5-2.5K And JB4SS |
|
| 30386 |
Mount Kit,RL1855HE 3EA 4,000 lb SST HE Compression INCL RL35082-N5-4K And JB4SS |
|
| 30384 |
Mount Kit,RL1860HE 3EA 5,000 lb SST HE Compression INCL RL35082-N5-5K And JB4SS |
|
| 30382 |
Mount Kit,RL1860HE 3EA 10,000 lb SST HE Compression INCL RL35082-N5-10K And JB4SS |
|
4-Module Kit
| PART # |
PRODUCT DESCRIPTION |
|
|
| 30389 |
Mount Kit,RL1855HE 4EA 1,000 lb SST HE Compression INCL RL35082-N5-1K And JB4SS |
|
| 30387 |
Mount Kit,RL1855HE 4EA 2,500 lb SST HE Compression INCL RL35082-N5-2.5K And JB4SS |
|
| 30385 |
Mount Kit,RL1855HE 4EA 4,000 lb SST HE Compression INCL RL35082-N5-4K And JB4SS |
|
| 30383 |
Mount Kit,RL1860HE 4EA 5,000 lb SST HE Compression INCL RL35082-N5-5K And JB4SS |
|
| 30381 |
Mount Kit,RL1860HE 4EA 10,000 lb SST HE Compression INCL RL35082-N5-10K And JB4SS |
|
