RL9000TWM Series Weigh Module

$0.00

High-Precision Stainless Steel Weigh Module

The RL9000TWM Series stainless steel weigh module is ideal for use in tank, hopper, vessel and many other applications. The low-profile design offers an economical solutions in a competitive marketplace. This rugged, high-precision mount is designed for easy installation and does not require check rods or other stabilizing hardware. The stainless steel construction and welded seal offer additional protection in washdown areas.

Applications

  • Tank, hopper or vessel weighing
Download product PDF
Categories: ,

Features

Product PDF

RL9000TWM Series Weigh Module

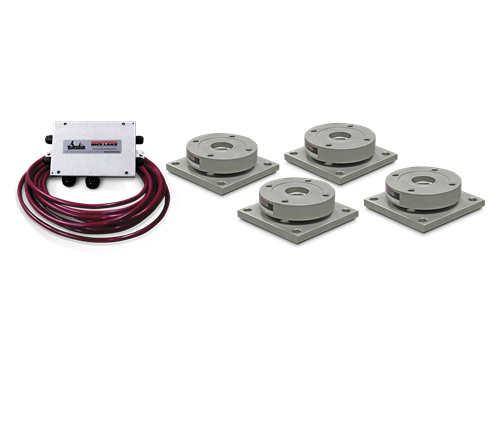

Complete Kit Includes

  • Three or four stainless steel mounting assemblies with RL9000TWM compression disk load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 1,000 to 450,000 lb
  • Stainless steel construction
  • Very low profile design
  • Self-centering
  • Self-checking assembly
  • Offers 100% sideload, 100% uplift and 150% static safe load and 300% ultimate static overload protection
  • Weighs accurately with up to 3° non-parallel load

Optional Features

  • Stainless steel top plates (150,000 to 450,000 lb have mild steel painted base plate)

Specifications

Full Scale Output:
3.0 (± 0.1%) mV/V

Bridge Resistance:
350 ohm

Material/Finish:
Stainless steel

Operating Temperature:
0 °F to 150 °F (-17 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

 Rated Excitation:
5 to 10 VDC

Insulation Resistance:
5,000 megohm

Non-linearity:
1 to 100 K: 0.05% FS
150 to 450 K: 0.1% FS

Non-repeatability:
1 to 100 K: 0.02% full scale
150 to 450 K:0.03% full scale

Cable Length:
25 ft

 Deflection at Capacity:
1 to 15 K: 0.002in
20 to 50 K: 0.004in
60 to 100 K: 0.007in
150 to 200 K: 0.007in
250 to 400 K: 0.009in

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
Two-year limited
