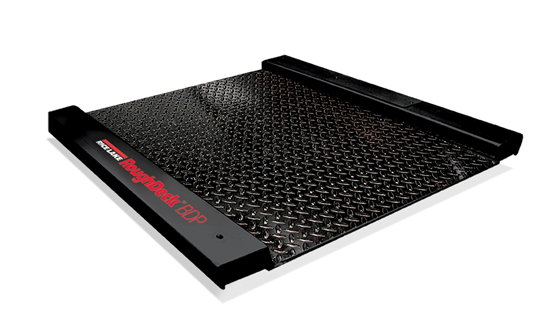

RoughDeck BDP Barrel Drum Pallet Mild Steel Floor Scale

$0.00

  • Live siderails
  • Top access foot adjustment holes (holes are 1/2-13 threaded for lifting scale)
  • Four adjustable stainless steel SUREFOOT? support feet
  • TuffSeal JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Diamond tread top plate
  • Alloy steel load cells
Download product PDF
Categories: ,

Features

? Live siderails
? Top access foot adjustment holes (holes are 1/2-13 threaded for lifting scale)
? Four adjustable stainless steel SUREFOOT? support feet
? TuffSeal JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
? Treaded top plate
? Alloy steel load cells

Specifications

End Load Capacity:
1,000 lb: 100% full scale
2,500 lb: 80% full scale
Cable Length:
10 ft (3m)
Threaded Eyebolt:
Hole (1/2-13NC) located in center of deck for easy
lifting
Warranty:
RoughDeck BDP weldment three years, load cells two
years, all other components one year
Approvals:
NTEP CC 03-060, Class III 2,500d
Measurement Canada AM-5578
(500 kg) Class III 2,500d
(1,000 kg) Class III 2,000d

Options

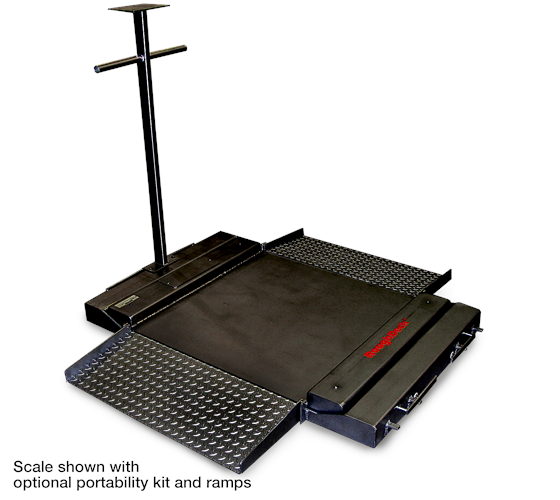

Access Ramp

78011 Ramp, Roughdeck BDP 2.5ftW x 1ftL 1,000-2,500lb Steel Painted Treaded Top Plate Stationary
78012 Ramp, Roughdeck BDP 3ftW x 1ftL 1,000-2,500lb Steel Painted Treaded Top Plate Stationary

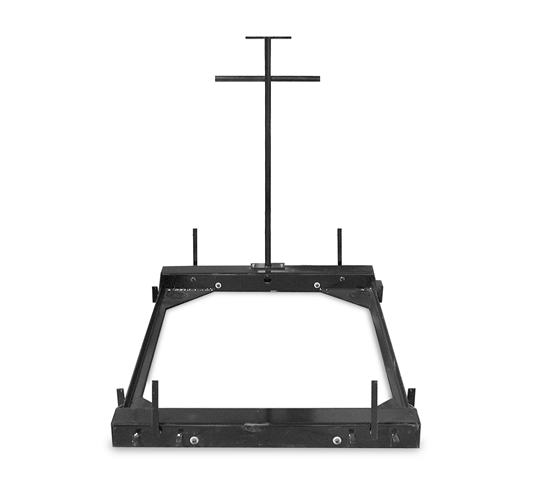

RoughDeck BDP Mild Steel Portability Kit

77962 Scale, Barrel Roughdeck BDP 30x31x1.625 1,000 lb steel painted
77963 Scale, Barrel Roughdeck BDP 30x31x1.625 2,500 lb steel painted
77964 Scale, Barrel Roughdeck BDP 36x37x1.625 1,000 lb steel painted
77965 Scale, Barrel Roughdeck BDP 36x37x1.625 2,500 lb steel painted



18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted
19352 Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 320IS, 320IS w/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus,480/480 Plus, 482/482 Plus
126384 Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 320IS, 320IS w/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
NA Mild steel deck with RL35023S stainless steel cFMusus approved load cells and hardware
NA Mild steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware
NA Mild steel deck with RL35082 hermetically sealed IP69K stainless steel cFMusus approved load cells and hardware

Models

77962 Scale, Barrel Roughdeck BDP 30x31x1.625 1,000 lb steel painted
77963 Scale, Barrel Roughdeck BDP 30x31x1.625 2,500 lb steel painted
77964 Scale, Barrel Roughdeck BDP 36x37x1.625 1,000 lb steel painted
77965 Scale, Barrel Roughdeck BDP 36x37x1.625 2,500 lb steel painted
