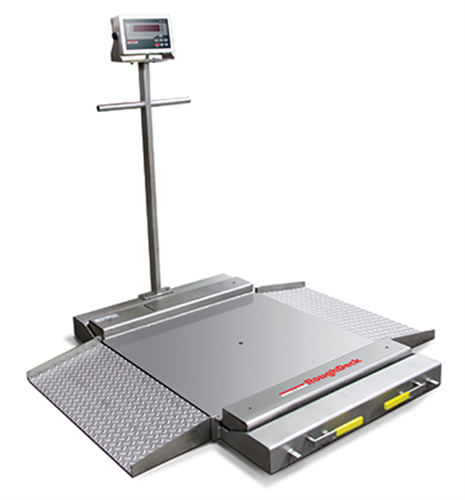

? Live siderails
? Top access foot adjustment holes (holes are 1/2-13 threaded for lifting scale)
? Four adjustable stainless steel SUREFOOT? support feet
? TuffSeal JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

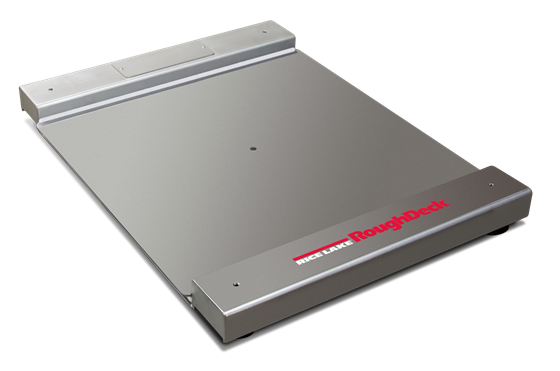

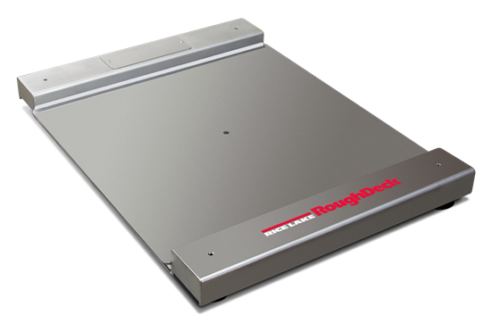

? Smooth top plate
? Stainless steel or stainless steel with welded-seal (IP67) load cells
Specifications
End Load Capacity:
1,000 lb: 100% full scale
2,500 lb: 80% full scale Cable Length:
10 ft (3m) Threaded Eyebolt:
Hole (1/2-13NC) located in center of deck
for easy lifting Warranty:
RoughDeck BDP weldment three years, load cells two
years, all other components one year Approvals:
NTEP CC 03-060, Class III 2,500 d
Measurement Canada AM-5578
(500 kg) Class III 2,500 d
(1,000 kg) Class III 2,000 d
RLH35 load cells in PN 77971, 77972, 77973, and
77974 are not Canada FM approved
Options

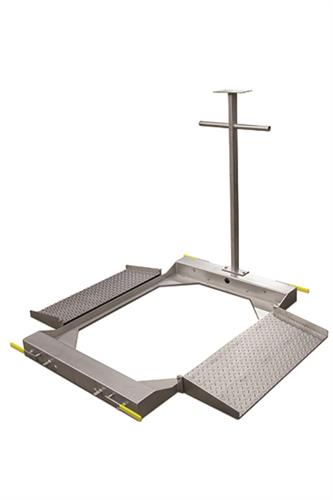

Access Ramps
PART #
PRODUCT DESCRIPTION
78013
Ramp, Roughdeck BDP 2.5ftW x 1ftL 1,000-2,500lb SST Treaded Top Plate Stationary
78014
Ramp, Roughdeck BDP 3ftW x 1ftL 1,000-2,500lb SST Treaded Top Plate Stationary
Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel (cFMusus approved) load cells and hardware if you add to first subset (PN 77967, 77968, 77972, 77970)
Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel (cFMusus approved) load cells and hardware if you add to second subset (PN 77971, 77972, 77973, 77974)
