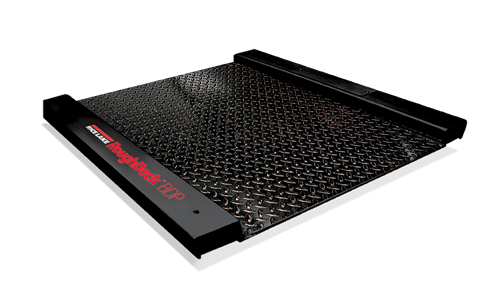

RoughDeck BDP Mild Steel – Stationary Model


When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck BDP floor scales’ low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

Download product PDF


  • Live siderails
  • Top-access foot adjustment holes
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Diamond tread top plate
  • Alloy steel load cells


End Load Capacity:
1,000 lb: 100% full scale
2,500 lb: 80% full scaleCable Length:
10 ft (3 m)
Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim cardWelding:

Threaded Eyebolt:
Hole (1/2-13 NC) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-yearApprovals:
NTEP 03-060, Class III 2,500 d
Measurement Canada AM-5578
(500 kg) Class III 2,500 d
(1,000 kg) Class III 2,000 d


77962 Scale, Barrel Roughdeck BDP 30x31x1.625 1,000 lb steel painted
77963 Scale, Barrel Roughdeck BDP 30x31x1.625 2,500 lb steel painted
77964 Scale, Barrel Roughdeck BDP 36x37x1.625 1,000 lb steel painted
77965 Scale, Barrel Roughdeck BDP 36x37x1.625 2,500 lb steel painted
