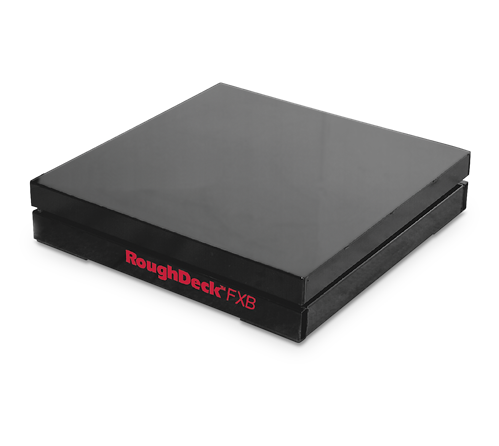

RoughDeck® FXB Flexure Base Floor Scale

$0.00

The RoughDeck FXB flexure lever floor scale’s unique flexure design filters motion and shock loading. The s-beam load cell is critical to the flexure functionality. Available in a variety of sizes and weight capacities, the RoughDeck FXB flexure lever floor scale is customizable to a vast array of applications, and its rugged, all-steel design withstands damage.

Download product PDF
Categories: ,

Features

Painted Steel
  • Unique flexure design filters motion and shock loading
  • Spring steel flexures
  • Rugged all-steel painted construction smooth deck
  • One Rice Lake Weighing Systems brand RL20000 series nickel-plated s-beam load cell and plated wire rope
  • NTEP Certified models in sizes 24 × 24 in (500 lb) through 72 × 96 in up to 10,000 lb capacity
Stainless Steel
  • Unique flexure design filters motion and shock loading
  • All 304 stainless steel construction, smooth deck
  • Stainless flexures, hardware and load cell
  • NTEP Certified models in sizes 24 × 24 in (500 lb) through 72 × 96 in up to 10,000 lb capacity

Specifications

End Loading Capacity:
100% of scale capacity

Safe Overload Capacity:
150% of scale capacity

 Warranty:
Two-year limited		 Approvals:
Painted: NTEP CC 88-100, Class III 5,000d
Stainless steel: NTEP CC 88-100, Class III 3,000d

Options

33134 Scale,Floor FLEX FXB1824- .5k 1-1/2ftx2ftx6-1/8 500lb NTEP III Steel Painted
33066 Scale,Floor FLEX FXB1824- 1k 1-1/2ftx2ftx6-1/8 1000lb 20ft NTEP III Steel Painted
113566 Scale,Floor FLEX FXB1830-.5K, 1-1/2ft x 2-1/2ft x 6.5 500lb NTEP III Steel Painted
33136 Scale,Floor FLEX FXB1830- 1k 1-1/2ftx2-1/2ftx6-1/8 1000lb 20ft NTEP III Steel Painted
113567 Scale,Floor FLEX FXB1830-1.5K, 1-1/2ft x 2-1/2ft x 6.5 1,500lb NTEP III Steel Painted
33067 Scale,Floor FLEX FXB2424- .5k 2ftx2ftx6-1/8 500lb 20ft NTEP III Steel Painted
33068 Scale,Floor FLEX FXB2424- 1k 2ftx2ftx6-1/8 1000lb 20ft NTEP III Steel Painted
33069 Scale,Floor FLEX FXB3030- 1k 2-1/2ftx2-1/2ft 1000lb 20ft NTEP III Steel Painted
33139 Scale,Floor FLEX FXB3030- 1.5k 2-1/2ftx2-1/2×6-1/8 1500lb 20ft NTEP III Steel Painted
133070 Flooring,X-Lug Rough Surface 8×2 inch x 82.5 Long 60% Rubber Coated 3/4 x 1 Wide Raised Ribs on Top Side Length +0.00/-0.50
33140 Scale,Floor FLEX FXB3636- 1k 3ftx3ftx8-1/4 1000lb 20ft NTEP III Steel Painted
133071 Flooring,X-Lug Rough Surface 8×2 inch x 106.5 Long 60% Rubber Coated 3/4 x 1 Wide Raised Ribs on Top Side Length +0.00/-0.50
33141 Scale,Floor FLEX FXB3846- 1k 3-1/6ftx3-5/6ftx8-1/4 1000lb 20ft NTEP III Steel Painted
113569 Scale,Floor FLEX FXB3846-2K, 3.16ft x 3.83ft x 8.25 2,000lb NTEP III Steel Painted
113570 Scale,Floor FLEX FXB3846-5K, 3.16ft x 3.83ft x 8.25 5,000lb NTEP III Steel Painted
113572 Scale,Floor FLEX FXB4848-1K, 4ft x 4ft x 8.25 1,000lb NTEP III Steel Painted
33073 Scale,Floor FLEX FXB4848- 2k 4ftx4ftx8-1/4 2000lb 20ft NTEP III Steel Painted
33074 Scale,Floor FLEX FXB4848- 5k 4ftx4ft8-1/4 5000lb 20ft NTEP III Steel Painted
33075 Scale,Floor FLEX FXB4848- 10k 4ftx4ftx9-1/4 10,000lb 20ft NTEP III Steel Painted
33078 Scale,Floor FLEX FXB4860- 10k 4ftx5ftx9-1/4 10,000lb 20ft NTEP III Steel Painted
33149 Scale,Floor FLEX FXB4872- 5k 4ftx6ftx9-1/4 5000lb 20ft NTEP III Steel Painted
33080 Scale,Floor FLEX FXB4872- 10k 4ftx6ftx9-1/4 10,000lb 20ft NTEP III Steel Painted
33081 Scale,Floor FLEX FXB6060- 5k 5ftx5ftx8-1/4 5000lb 20ft NTEP III Steel Painted
33138 Scale,Floor FLEX FXB3030- .5k 2-1/2ftx2-1/2ftx6-1/8 500lb 20ft NTEP III Steel Painted
33082 Scale,Floor FLEX FXB6060- 10k 5ftx5ftx9-1/4 10,000lb 20ft NTEP III Steel Painted
33083 Scale,Floor FLEX FXB6072- 10k 5ftx6ftx10-1/4 10,000lb 20ft NTEP III Steel Painted
113581 Scale,Floor FLEX FXB2424-.5K, 2ft x 2ft x 6.5 500lb NTEP III Stainless Steel
113582 Scale,Floor FLEX FXB2424-1K, 2ft x 2ft x 6.5 1,000lb NTEP III Stainless Steel
113586 Scale,Floor FLEX FXB3030-2K, 2-1/2ft x 2-1/2ft x 8.25 2,000lb NTEP III Stainless Steel
113588 Scale,Floor FLEX FXB3636-2K, 3ft x 3ft x 8.25 2,000lb NTEP III Stainless Steel
113595 Scale,Floor FLEX FXB4848-5K, 4ft x 4ft x 8.25 5,000lb NTEP III Stainless Steel
113596 Scale,Floor FLEX FXB4848-10K, 4ft x 4ft x 11.25 10,000lb NTEP III Stainless Steel
113613 Scale,Floor FLEX FX6072-10K, 5ft x 6ft x 11.25 10,000lb NTEP III Stainless Steel
113604 Scale,Floor FLEX FX4860-5K, 4ft x 5ft x 8.25 5,000lb NTEP III Stainless Steel
