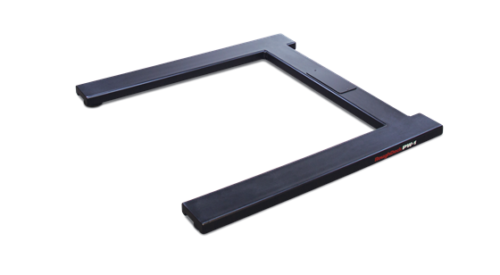

RoughDeck® PW-1 Mild Steel Pallet Floor Scale

  • Low-profile design
  • 20 feet SURVIVOR® EL147HE hostile environment load cell cable
  • Top-access junction box
  • TuffSeal JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Four NTEP Certified alloy steel, shear beam load cells

Features

End Load Capacity:
80% full scale at 2,500 lb
100% full scale at 5,000 lb
Cable Length:
20 ft (6.1m) for connecting junction box to indicator
Warranty:
Load cells two years, all other components one year

Specifications

• Low-profile design
• 20 feet SURVIVOR® EL147HE hostile environment
load cell cable
• Top-access junction box
• TuffSeal JB4SS stainless steel, NEMA Type 4X
junction box with signal trim card
• Four adjustable stainless steel SUREFOOT™
support feet
• Four NTEP Certified alloy steel,
shear beam load cells

Options

18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted
19352 Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 320IS, 320IS w/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus,480/480 Plus, 482/482 Plus
126384 Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 320IS, 320IS w/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
178250 Wheel Kit, Roughdeck PW SST (Includes 2 wheels w/brackets and mounting hardware)
NA Mild steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware
NA Mild steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware
NA Mild steel deck with RL35023S stainless steel cFMus approved load cells and hardware
NA Epoxy paint

Models

177904 Scale,Floor Roughdeck 4x4PW-2.5K 4ftx4ftx3 2,500lb 20ft EL147HE Homerun cable Steel Painted
177905 Scale,Floor Roughdeck 4x5PW-2.5K 4ftx5ftx3 2,500lb 20ft EL147HE Homerun cable Steel Painted
177906 Scale,Floor Roughdeck 5x5PW-2.5K 5ftx5ftx3 2,500lb 20ft EL147HE Homerun cable Steel Painted
177907 Scale,Floor Roughdeck 4x4PW-5K 4ftx4ftx3 5,000lb 20ft EL147HE Homerun cable Steel Painted
177908 Scale,Floor Roughdeck 4x5PW-5K 4ftx5ftx3 5,000lb 20ft EL147HE Homerun cable Steel Painted
177909 Scale,Floor Roughdeck 5x5PW-5K 5ftx5ftx3 5,000lb 20ft EL147HE Homerun cable Steel Painted
