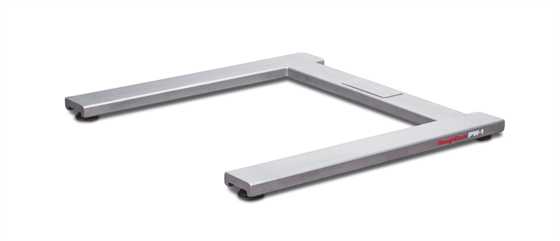

RoughDeck® PW-1 Stainless Steel Pallet Floor Scale

$0.00

  • Low-profile design
  • 20 feet SURVIVOR® EL147HE hostile environment load cell cable
  • Top-access junction box
  • TuffSeal JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Four NTEP Certified stainless steel, shear beam load cells
Download product PDF

Features

• Low-profile design
• 20 feet SURVIVOR® EL147HE hostile environment
load cell cable
• Top-access junction box
• TuffSeal JB4SS stainless steel, NEMA Type 4X
junction box with signal trim card
• Four adjustable stainless steel SUREFOOT™
support feet
• Four NTEP Certified stainless steel,
shear beam load cells

Specifications

End Load Capacity:
80% full scale at 2,500 lb
100% full scale at 5,000 lb
Cable Length:
20 ft (6.1m) for connecting junction box to indicator
Warranty:
Load cells two years, all other components one year

Options

18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST
28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 320IS, 320IS W/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
178250 Wheel Kit, Roughdeck PW SST (Includes 2 wheels w/brackets and mounting hardware)
NA Stainless steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware
NA Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware

Models

177910 Scale,Floor Roughdeck 4x4PW-2.5K 4ftx4ftx3 2,500lb 20ft EL147HE Homerun cable Stainless Steel
177911 Scale,Floor Roughdeck 4x5PW-2.5K 4ftx5ftx3 2,500lb 20ft EL147HE Homerun cable Stainless Steel
177912 Scale,Floor Roughdeck 5x5PW-2.5K 5ftx5ftx3 2,500lb 20ft EL147HE Homerun cable Stainless Steel
177913 Scale,Floor Roughdeck 4x4PW-5K 4ftx4ftx3 5,000lb 20ft EL147HE Homerun cable Stainless Steel
177914 Scale,Floor Roughdeck 4x5PW-5K 4ftx5ftx3 5,000lb 20ft EL147HE Homerun cable Stainless Steel
177915 Scale,Floor Roughdeck 5x5PW-5K 5ftx5ftx3 5,000lb 20ft EL147HE Homerun cable Stainless Steel
