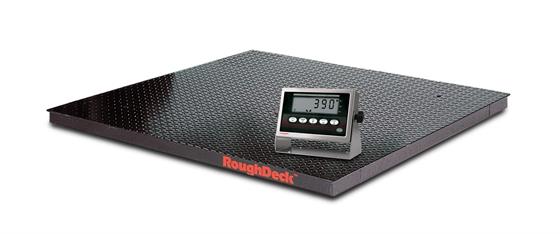

RoughDeck Rough-n-Ready Floor Scale System

$0.00

  • Rugged diamond-deck safety treadplate
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Four corner overload stops
  • Remote iQUBE2® four-channel junction box with power supply
  • Diagnostic routines for weighing errors and configurable error reporting
  • Cell tests for overloaded, underloaded, zero reference, drift, noise and unbalanced conditions
  • Onboard status LEDs for communications and visual bi-color indication of cell health
  • Cell emulator compensates for load cell failure until a repair can be made
  • Cal-Match® algorithm automatically trims and calibrates the scale in one pass of test weights
  • Standard communication RS-232
  • Web browser-based scale monitoring
  • Configurable display options
  • Virtual front panel consists of display and 5 button keypad (zero, units, point, tare, gross/net)
  • Printer port for output-only, simplex communications
  • 2 print formats
  • Peak weight history
  • Recalibration notification
Download product PDF
Categories: , ,

Specifications

RoughDeck Approvals:
NTEP CC 92-001 Class III 5,000 d

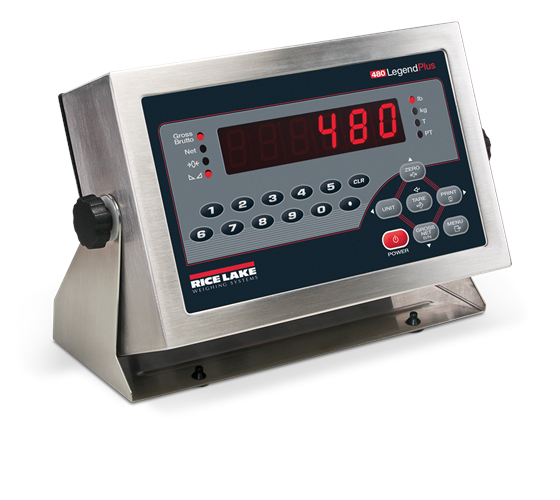

Measurement Canada AM-4827, Class III 5,000 d480/480 Plus Legend? Approvals:

Measurement Canada AM-5892
Accuracy Class III/IIIHD, 10,000 d
NTEP CC 12-123,
Accuracy Class III/IIIL, 10,000 d
OIML R76/2006-NL1-12.48, T5692, TC8322
Accuracy Class III, 10,000 d
CE Marked
UL Marked 482/482 Plus Legend? Approvals:
Measurement Canada AM-5892
Accuracy Class III/IIIHD, 10,000 d
NTEP CC 12-123,
Accuracy Class III/IIIL, 10,000 d
OIML R76/2006-NL1-12.48, T5692, TC8322
Accuracy Class III, 10,000 d
CE Marked 680 Synergy Series Approvals:
NTEP CC 12-123, Class III/IIIL, 10,000d
Measurement Canada AM-5892,
Class III/IIIHD, 10,000d
OIML R76/2006-A-NL1-19.56
UL/cUL Listed
CE Marked
Warranty:
RoughDeck HP weldment five years, load cells and indicators two years, all other components one year

Refer to Floor Scale and Indicator sections of catalog for complete specifications.

Approvals are for floor scales only. Please refer to indicator section for indicator approvals.

Options

18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted
19352 Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 320IS, 320IS w/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus,480/480 Plus, 482/482 Plus
126384 Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 320IS, 320IS w/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
77925 LIT,CDRevolution III Revolution Software, Indicator Manuals
NA Access ramps, pit frames, bumper guards and portability frames available

Models

155666 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/480 Legend 115VAC Factory Calibrated
168140 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/480 Plus Legend 115VAC Factory Calibrated Calibrated
168146 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/482 Legend 115VAC Factory Calibrated Calibrated
168152 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/482 Plus Legend 115VAC Factory Calibrated Calibrated
168159 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/482 Legend with internal battery 115VAC Factory Calibrated
168165 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/482 Plus Legend with interanl battery 115VAC Factory Calibrated
155667 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/480 Legend 115VAC Factory Calibrated
168141 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/480 Plus Legend 115VAC Factory Calibrated
168147 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/482 Legend 115VAC Factory Calibrated
168153 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/482 Plus Legend 115VAC Factory Calibrated
168160 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/482 Legend with internal battery 115VAC Factory Calibrated
168166 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/482 Plus Legend with internal battery 115VAC Factory Calibrated
