RoughDeck® Rough-n-Ready System, Floor Scale and 680 Indicator

$0.00

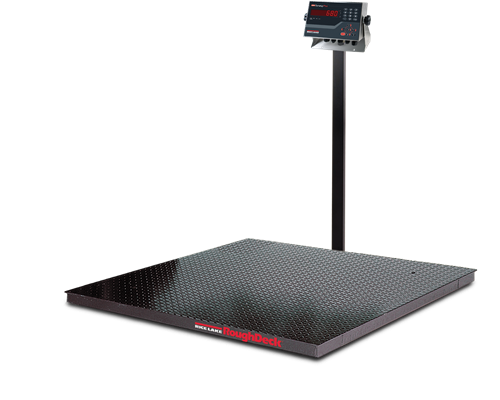

The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4 ft RoughDeck floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

Download product PDF
Categories: ,

Features

  • Package includes: RoughDeck HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 680 indicator
  • Package factory-calibrated for 5,000 divisions

Scale

  • Heavy-duty design with structural steel under support
  • Four NTEP certified alloy steel shear beam load cells
  • Side-access JB4SS TuffSeal® junction box

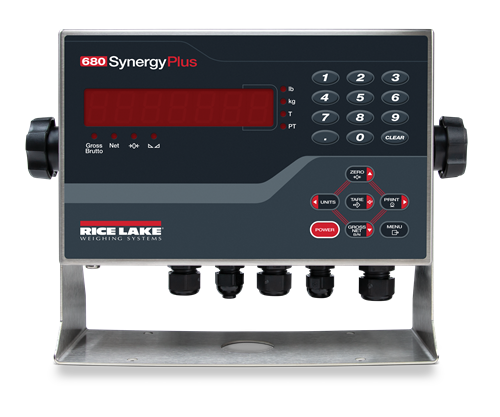

Indicator

  • Bright seven-digit, seven-segment LED display
  • Battery backed time and date
  • Full numeric keypad
  • Communication ports

Specifications

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

 Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

 Approvals:
NTEP 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d
Communication Ports:
Two full-duplex RS-232
RS-485/RS-422 (two-wire or four-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)

Display:
Seven 0.8 in tall, seven-segment digits

 Annunciators:
Eight LED annunciators

Keys/Buttons:
Flat membrane panel, tactile feel (18 buttons plus ON/OFF)

Rating/Material:
IP69K
AISI 304 stainless steel

 Approvals:
NTEP 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121C, Class III/IIIHD, 10,000d
OIML R76/2006-A-NL1-19.56
cULus Listed
CE Marked

Options

196661 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/680 Synergy 115VAC Factory Calibrated
196662 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/680 Synergy 115VAC Factory Calibrated
196663 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/680 Synergy 230VAC EURO Plug Factory Calibrated
196664 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/680 Synergy 230VAC EURO Plug Factory Calibrated
