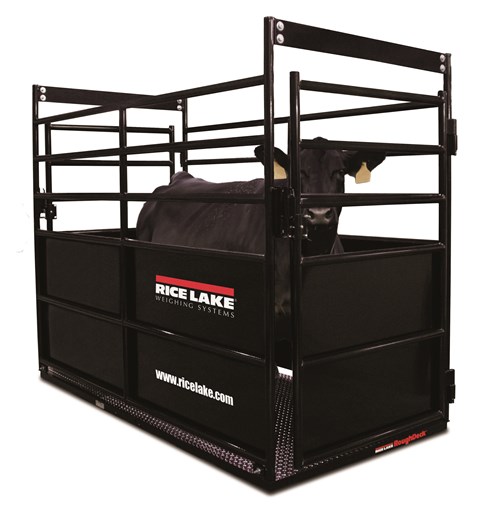

RoughDeck® SLV Single Animal Livestock Scale

$0.00

The diamond treadplate and rigid structural-steel channel frame provide durability for weighing sheep, goats, cattle, hogs, horses and more. The SLV animal livestock scale can be customized for retrofit or unique applications.

Download product PDF
Category:

Features

  • Mild steel construction
  • Rugged diamond safety treadplate deck
  • Rigid structural steel channel frame
  • NEMA Type 4X stainless steel side-access junction box without quick connector
  • Signal trim summing board
  • Four adjustable stainless steel SUREFOOT™ support feet
  • SURVIVOR® EL147HE hostile environment load cell cable
  • Four alloy steel load cells

Specifications

Full Scale Capacity:
4,000 lb, 1 lb increments

End Load Capacity:
125% full scale

 Cable Length:
20 ft (6 m)

Warranty:
Two-year limited (scale only)

Approvals:
NTEP 92-001 Class III 4,000d

Capacity not to exceed 4,000 lb x 1 lb and platform size not to exceed 32 sq ft

Options

18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted
18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST
Consult Smooth deck instead of diamond safety tread plate
Consult Stainless steel load cells (RL32018S IP66) and hardware
Consult Stainless steel hermetically sealed load cells (RL32218S-HE IP69K) and hardware
Consult Angle iron bolted to scale for wood deck provisions (wood to be supplied by customer)
Consult Rubber mat
Consult Slide gate
