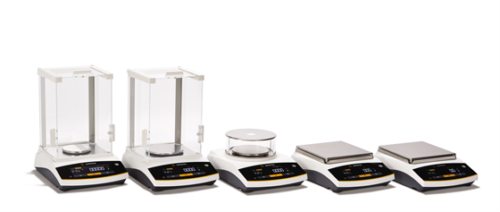

Sartorius Entris II Analytical, Precision, Toploading Balances

$0.00

Sartorius Entris II Analytical, Precision, Toploading Balances

Download product PDF
Categories: ,

Features

  • User-friendly operation
  • Basic applications
  • Monolithic weighing systems
  • Aluminum die-cast base, ABS housing
  • Front level bubble
  • RS-232 standard
  • Below balance weighing

Specifications

BCE64i-1S^ BCE124i-1S^ BCE224i-1S^ BCE223i-1S^ BCE323i-1S^ BCE423i-1S^ BCE623i-1S^
^Weighing Chamber
Part # 197392 197393 197394 197395 197396 197397 197398
Capacity 60 g 120 g 220 g 220 g 320 g 420 g 620 g
Readability 0.1 mg 0.1 mg 0.1 mg 0.001 g 0.001 g 0.001 g 0.001 g
Repeatability ±0.1 mg ±0.1 mg ±0.1 mg ±1 mg ±1 mg ±1 mg ±1 mg
Linearity ±0.2 mg ±0.2 mg ±0.2 mg ±2 mg ±2 mg ±2 mg ±2 mg
External Calibration Weight 50 g 100 g 200 g 200 g 200 g 200 g 500 g
Weighing Modes Gram, Kilogram, Carat, Pound, Ounce, Troy Ounce, Hong Kong Tael, Singapore Tael, Taiwan Tael, Grain, Pennyweights, Milligram, Parts per Pound, China Teal, Mommes, Austrian Carat, Tola, Baht, Mesghal, Tons, Pounds:Ounces, Newton
Applications Weighing, Density, Percentage, Counting, Mass Unit Conversion
Display Type Backlit LCD white, 15 mm digits
Operating Humidity 15% to 80% for temperatures up to 31° C
Operating Temperature 41° F to 104° F (5° C to 40° C)
Stabilization Time (typical) 2.5 seconds 1.3 seconds 1.1 seconds 1.0 seconds
Net Weight (kg/lbs) 6.2 kg (13.7 lb)
Pan Size/Type 90 mm (3.5 in) diameter pan, stainless steel 120 mm (4.7 in) pan, stainless steel
Dimensions (W x D x H) 230 x 303 x 330 mm (9.1 x 11.9 x 13 in) 230 x 303 x 136 mm (9.1 x 11.9 x 5.4 in)
AC Power Requirements AC adapter, 115 V-240 V, US plug
Warranty Two-year Limited Warranty
BCE622i-1S BCE653i-1S^ BCE822Ii-1S BCE1202i-1S BCE2202i-1S BCE2201i-1S BCE3202i-1S
^Weighing Chamber
Part # 197399 197400 197401 197402 197403 197404 197405
Capacity 620 g 650 g 820 g 1,200 g 2,200 g 2,200 g 3,200 g
Readability 0.01 g 0.001 g 0.01 g 0.01 g 0.01 g 0.1 g 0.01 g
Repeatability ±1 mg ±1 mg ±1 mg ±1 mg ±1 mg ±0.1 g ±0.1 g
Linearity ±2 mg ±2 mg ±2 mg ±2 mg ±2 mg ±0.3 g ±0.3 g
External Calibration Weight 500 g 500 g 500 g 500 g 500 g 2,000 g 5,000 g
Weighing Modes Gram, Kilogram, Carat, Pound, Ounce, Troy Ounce, Hong Kong, Tael, Singapore Tael, Taiwan Tael, Grain, Pennyweights, Milligram, Parts per Pound, China Teal, Mommes, Austrian Carat, Tola, Baht, Mesghal, Tons, Pounds:Ounces, Newton
Applications Weighing, Density, Percentage, Counting, Mass Unit Conversion
Display Type Backlit LCD white, 15 mm digits
Operating Humidity 15% to 80% for temperatures up to 31° C
Operating Temperature 41° F to 104° F (5° C to 40° C)
Stabilization Time (typical) 1.0 seconds 1.5 seconds
Net Weight (kg/lb) 6.3 kg (13.9 lb) 4.8 kg (10.6 lb) 5.4 kg (12 lb) 6.3 kg (13.9 lb) 5.4 kg (12 lb) 5.4 kg (12 lb)
Pan Size/Type 120 mm (4.7 in) pan, stainless steel
Dimensions (W x D x H) 230 x 303 x 330 mm (9.1 x 11.9 x 13 in) 230 x 303 x 87 mm (9.1 x 11.9 x 3.4 in) (W x D x H) 230 x 303 x 136 mm (9.1 x 11.9 x 5.4 in)
AC Power Requirements AC adapter, 115 V-240 V, US plug
Warranty Two-year Limited Warranty



BCE4202i-1S BCE5201i-1S BCE6202i-1S BCE6200i-1S BCE8201i-1S BCE8200i-1S
Part # 197406 197407 197408 197409 197410 197411
Capacity 4,200 g 5,200 g 6,200 g 6,200 g 8,200 g 8,200 g
Readability 0.01 g 0.1 g 0.01 g 1.0 g 0.1 g 1.0 g
Repeatability ±0.1 g ±0.1 g ±0.1 g ±0.1 g ±0.1 g ±0.1 g
Linearity ±0.3 g ±0.3 g ±0.3 g ±0.3 g ±0.3 g ±0.3 g
External Calibration Weight 5,000 g 5,000 g 5,000 g 5,000 g 5,000 g 5,000 g
Weighing Modes Gram, Kilogram, Carat, Pound, Ounce, Troy Ounce, Hong Kong, Tael, Singapore Tael, Taiwan Tael, Grain, Pennyweights, Milligram, Parts per Pound, China Teal, Mommes, Austrian Carat, Tola, Baht, Mesghal, Tons, Pounds:Ounces, Newton
Applications Weighing, Density, Percentage, Counting, Mass Unit Conversion
Display Type Backlit LCD white, 15 mm digits
Operating Humidity 15% to 80% for temperatures up to 31° C
Operating
Temperature		 41° F to 104° F (5° C to 40° C)
Stabilization Time (typical) 1.5 seconds
Net Weight (kg/lb) 5.4 kg (12 lb)
Pan Size/Type (W x D x H) 180 x 180 x 91 mm (7.1 x 7.1 x 3.6 in)
Dimensions
(W x D x H)		 230 x 303 x 330 mm (9.1 x 11.9 x 13 in) 230 x 303 x 87 mm (9.1 x 11.9 x 3.4 in) 230 x 303 x 136 mm (9.1 x 11.9 x 5.4 in)
AC Power
Requirements		 AC adapter, 115 V-240 V, US plug
Warranty Two-year Limited Warranty

Options

112261 Printer,Data YDP20-0CE and Time/Date Function, Sartorius, 9 Pin to 25 Pin RS-232 Cable Included. Requires Power Supply Pn 191429. If used with Entris II Unit will also Need PN 201911 RS-232 9 Pin Male to 9 Pin Female
31103 Paper,Printer YPP01 STD Size Roll,Fits All YDPxx-xxx Printers Internally, 5 Rolls per Pack
31106 Ribbon,Printer 6906918 for YDP021YDP03 Minebea
155805 Cable,RS-232 to USB Connector, 2m, Sartorius YCC01-USBM2
191429 Universal Power Supply Input: 100-240VAC/50-60HZ. Inc. Line Cord CP3202S, CP6201, PT Series, Practum, Quintix, Secura, Entris Balance, EA35EDE-IOUR Scale, BP Series, EA Series, YDP20 PRINTER, and Entris II.

Models

197392 Entris II, 60g x 0.1mg Analytical Balance with Internal Calibration.
197393 Entris II, 120g x 0.1mg Analytical Balance with Internal Calibration.
197394 Entris II, 220g x 0.1mg Analytical Balance with Internal Calibration.
