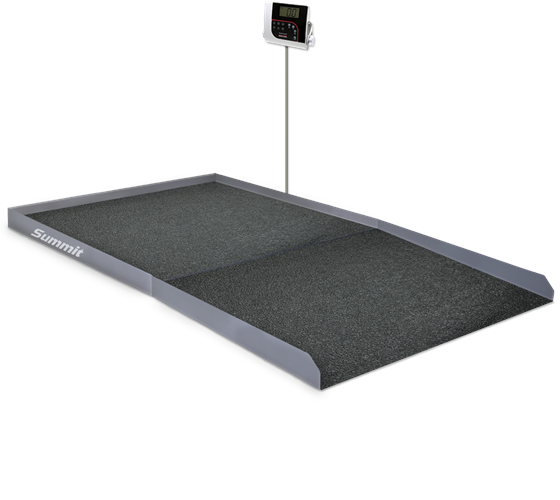

The Summit? bariatric scale provides exceptional performance in applications where typical wheelchair scales are not large enough to meet the needs of your patients.
Ability to manually enter the tare weight of additional items, such as a wheelchair or oxygen tank
Units of measure: lb only, kg only, lb/kg
Motiontrap? movement compensation technology
EHR capable
10 ft cable between scale base and indicator
Specifications
Capacity:
1,000 lb x 0.2 lb (450 kg x 0.1 kg)
Platform Dimensions:
(W x L x H) 36 in x 36 in x 4 in
Ramp Dimensions:
(W x L x H) 36?in x 28.5 in x 4 in
Display:
5-digit LCD display, 0.75 in (1.9 mm) digit height
Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adaptor (optional)
Battery Type:
Six AA alkaline (included)
Battery Use:
25 hours continuous use with batteries
Automatic?power-off can be configured
Operating Temperature:
50? F to 104? F (14? C to 40? C)
Warranty:
Two-year limited warranty
Approvals:
c-Met (pending)
Options
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.3A max, UL approved
102508 Adapter,220VAC AC Healthweigh 9VDC 500MA
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson
186830 Cable Assembly, RS-232 Scale to Printer, 6ft, 25-pin D-Sub male to RJ-45
Models
Part #?150706
Product DescriptionScale, SB-1150 1000 LB. Package (Scale, Ramp and Indicator) 36in(W)X 36in(L)X 3in(H) With Anti Slip Rubber Surface and 3 Sides With Saftey Rails, 36in(W)X28.5in(L) Ramp With Anti Slip Rubber Surface and Safety Rails, Indicator AC 10FT Homerun Cable to Connect Scale to HW Indicator. Side Access Junction Box. Includes 6 AA size Alkaline batteries.
Part #?168359
Product DescriptionScale, SB-1150BT 1000 LB. Package (Scale, Ramp and Indicator) 36in(W)X 36in(L)X 3in(H) With Anti Slip Rubber Surface and 3 Sides With Saftey Rails, 36in(W)X28.5in(L) Ramp With Anti Slip Rubber Surface and Safety Rails, Indicator with Bluetooth 2.0 AC 10FT Homerun Cable to Connect Scale to HW Indicator. Side Access Junction Box. Includes 6 AA size Alkaline batteries.
