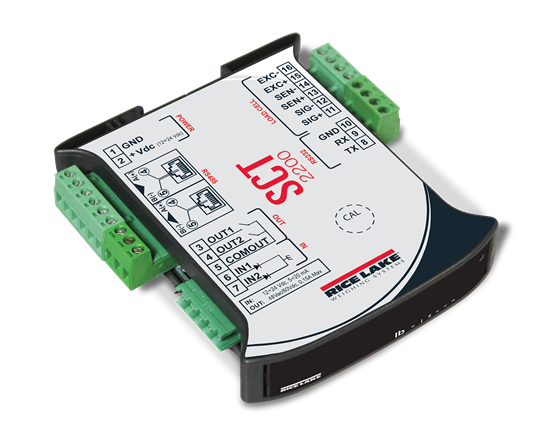

Features
- HUB Mode connects up to 16 transmitters to one fieldbus
- Quick menu for real and theoretical calibration
<liWeb browser weight monitoring and calibration over EtherNet/IP, Profinet and Modbus TCP networkn
- Red LED display with six-digits (8 mm) and six LEDs show active functions

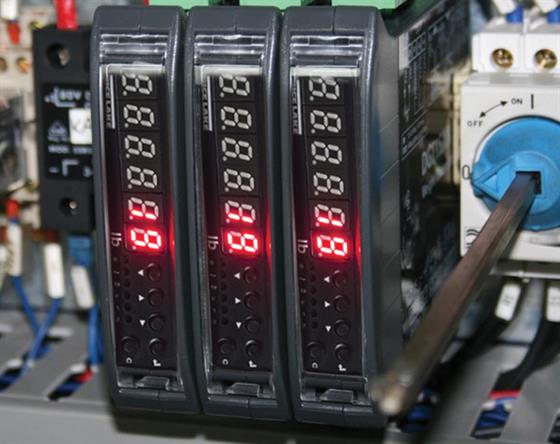

- Standard DIN rail mounting with power supply and enclosures
- Configurable calibration and setup parameters from keyboard
- Up to three calibration linearization points or three from the keyboard
- Reading of the net, gross and tare weights, clearing, semi-automatic and presettable tare, scale switch, setting of outputs application thresholds
- Diagnostic information via serial port, message display, printing, setting ofAPW in counting mode, simulation of key pressure, Modbus RTU

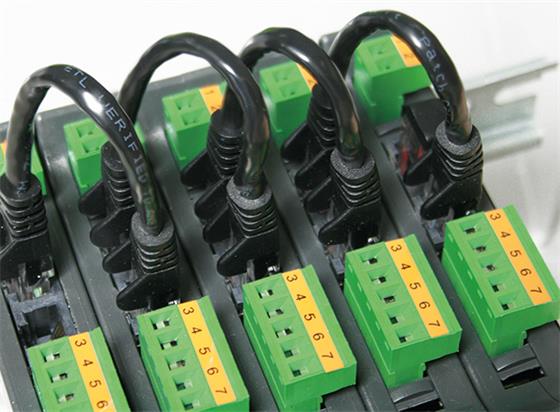

- Double RS-485 port for a quick network connection
- Printer management on second serial port available
- Multi-range function allows for subdividing the scale capacity in two, each up to 3,000 divisions
Specifications
Power:
12/24 VDC
Power Consumption:
70 mA min ? 100 mA max
Excitation Voltage:
5 VDC, 120 mA, 8 x 350 ?
Analog Signal Input Range:
? 39 mV
Analog Signal Sensitivity:
0.03 ?V/graduation minimum
0.3 ?V/graduation recommended
A/D Sample Rate:
One channel A/D 24-bit sigma-delta conversion, up to 200 conv. /sec. auto select
Resolution:
Internal resolution: 1.5 million counts
Weight display resolution: 800,000
Digital Inputs/Outputs:
Two inputs: 12/24 VDC
Two outputs:150 mA 48 VAC/ 150 mA 60 VDC
Serial Port:
1-RS-485, 1-RS-232
Analog Output (if equipped):
Opt isolated, 16-bit
0-20mA, 4-20mA (Maximum 350 ohm)
0-5VDC, 0-10VDC (Minimum 10,000 ohm)
Display:
Six-digit 0.31 in(8 mm), red LED
Annunciators:
Net, center of zero, stability
Keyboard:
Five key, tactile feel
Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)
Temperature & Humidity:
Working Temperature: 14? F to 122? F (-10? C to 50? C)
Humidity: 85% non-condensing
Dimensions (W x H x D):
0.98 in x 4.52 in x 4.72 in
(25 mm x 115 mm x 120 mm)
Weight:
1 lb (0.5 kg)
Rating/Material:
NEMA Type 1 plastic pluggable connectors
Warranty:
One-year limited warranty
