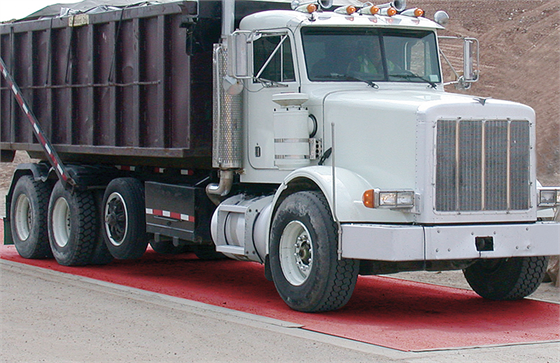

Survivor® PT-M Truck Scale

$0.00

The SURVIVOR® PT-M is a mechanical pipe-lever design of our pit-type PT model. The mechanical lever system is precision-built from heavy-duty structural steel to provide higher strength and less stress breaks than competitive components. These mechanical scales are designed with a load cell inserted into its lever system. These levertronic designs are better suited for areas susceptible to heavy moisture. The in-ground installation is ideal for locations with limited space or access. It may also be installed above ground for special site applications.

Download product PDF

Features

  • In-pit foundation
  • Ideal for limited access locations
  • Structural steel pipe lever system
  • NTEP Certified 05-018
  • Standard levers – 32.5 ton sectional rating
  • Capacities to 400,000lb
  • Standard widths from 10ft to 14ft
  • Standard profile 44.5in
  • Scale Options
  • Load cell stand, steel deck option, pit angle coping, deck rebar, deck channel, bumper plates, foundation bolts, manhole frames and covers, conversion s-beam load cell(s), load cell mounting hardware, indicator, printer or other peripheral equipment.

Specifications

  • Full Scale Capacity: Standard 60,000 lb to 200,000 lb. Custom up to 400,000 lb
  • Concentrated Load Capacity (CLC): Standard 50,000 lb to 70,000 lb. Custom up to 100,000 lb
  • Approvals: NTEP Certified per H-44, Class IIIL, 05-018 Measurement Canada AM-5598
  • Warranty: One-year warranty on pivots, bearings, suspension and mounting parts of the corner assemblies. Two-year weightbridge.

Options

  • Steel deck
