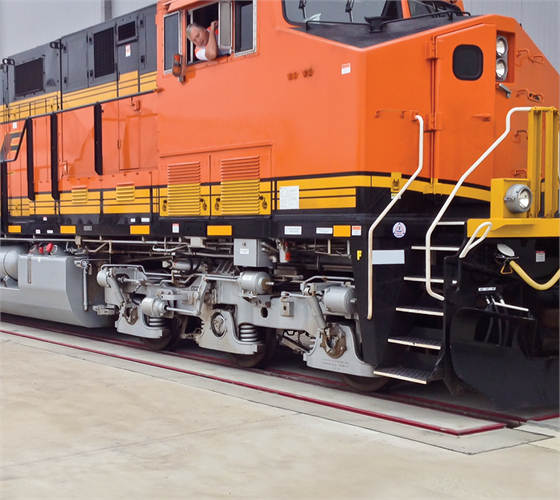

SURVIVOR RT Rail Scale
$0.00
- 200,00 lb capacity compression load cells
- Standard platform sizes: 60 ft; 66 ft; 70 ft; 72 ft; 80 ft; 90 ft; 100 ft
- 4 ft 9 in profile
- Factory welded modules
- Steel or concrete deck
- Lightning and surge suppression kit
- In-bridge conduit runs
- 7 in reinforced concrete deck design
- (1) 24 in square manhole ring and cover
- Fully assembled factory welded modules
Download product PDF
Features
200,00 lb capacity compression load cells
Standard platform sizes: 60 ft; 66 ft; 70 ft; 72 ft; 80 ft; 90 ft; 100 ft
4 ft 9 in profile
Factory welded modules
Steel or concrete deck
Lightning and surge suppression kit
In-bridge conduit runs

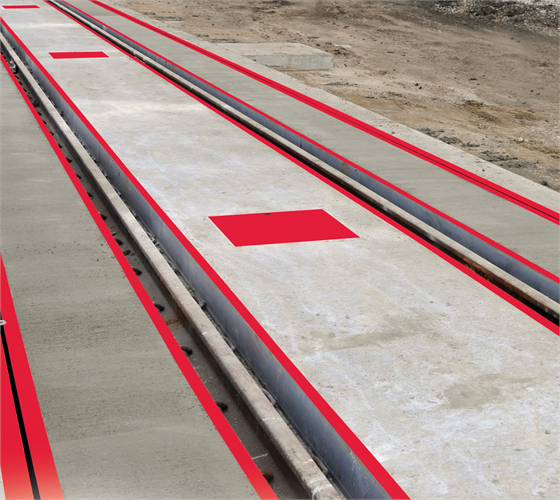

7 in reinforced concrete deck design
(1) 24 in square manhole ring and cover
Fully assembled factory welded modules
Specifications

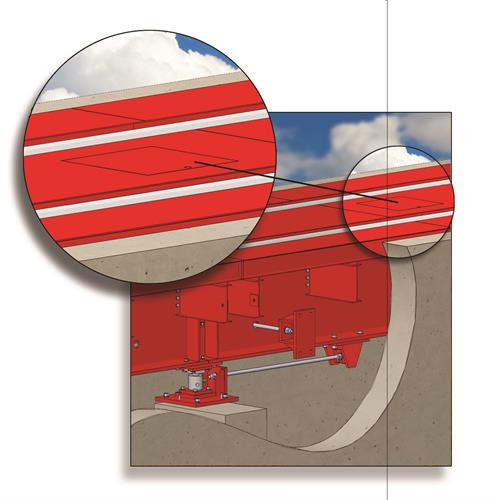

Load Cells:
200,000 lb capacity compression load cells
Gross Capacity:
400,000 lb
Sectional Capacity:
400,000 lb
Approvals:
NTEP CC 00-019, Class IIIL; Measurement Canada AM-5642; Meets Cooper E-80 design specifications; Meets AAR and AREMA specifications
Warranty:
Five-year limited warranty on the weighbridge; Two-year electronic components warranty
Options
- Custom platform sizes and configurations
- Concrete approach hardware
- Additional manholes
- Grain dumps
- T-beam approach hardware
- Rail trough channel
Models
Model Capacity Sectional Capacity? ? ? ?Platform Size?
RT 6010? ? ?400,000 lb? ? ? ? ? ? 200 ton? ? ? ? ? ? ? 60 ft x 10 ft
RT 6610? ? ?400,000 lb? ? ? ? ? ? 200 ton? ? ? ? ? ? ? 66 ft x 10 ft
RT 7010? ? ?400,000 lb? ? ? ? ? ? 200 ton? ? ? ? ? ? ? 70 ft x 10 ft
RT 7210? ? ?400,000 lb? ? ? ? ? ? 200 ton? ? ? ? ? ? ? 72 ft x 10 ft
RT 7510? ? ?400,000 lb? ? ? ? ? ? ?200 ton? ? ? ? ? ? ? 75 ft x 10 ft
RT 8010? ? ?400,000 lb? ? ? ? ? ? 200 ton? ? ? ? ? ? ?80 ft x 10 ft
RT 9010? ? ?400,000 lb? ? ? ? ? ? 200 ton? ? ? ? ? ? ?90 ft x 10 ft
RT 10010? ?400,000 lb? ? ? ? ? ?200 ton? ? ? ? ? ? ?100 ft x 10 ft
RT 11210? ? 400,000 lb? ? ? ? ? ? 200 ton? ? ? ? ? ? 112 ft x 10 ft
