Transcore Tags and Readers

$0.00

Transcore Tags and Readers speed up truck scale traffic flow and remotely identify vehicles with Radio Frequency Identification.

Download product PDF

Features

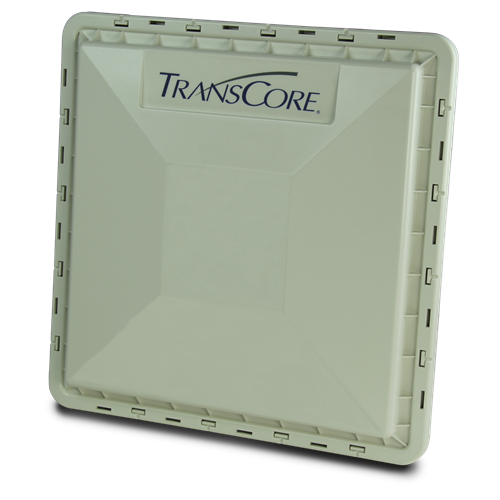

TransCore SmartPass RFID Reader

  • Fully self-contained, integrated reader
  • Ideal for truck scales, and parking and access control applications
  • 915MHz RF band operation
  • Compatibility with a wide range of industry-standard formats
  • Weatherproof enclosure
  • Quick, simple installation by trained, authorized personnel
  • Programmable RF power
  • Compatible with a variety of RFID tag options including half and full frame RFID tags (beam or battery powered) as well as windshield RFID tag options (beam or battery powered)

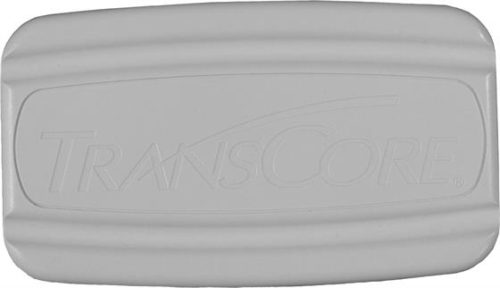

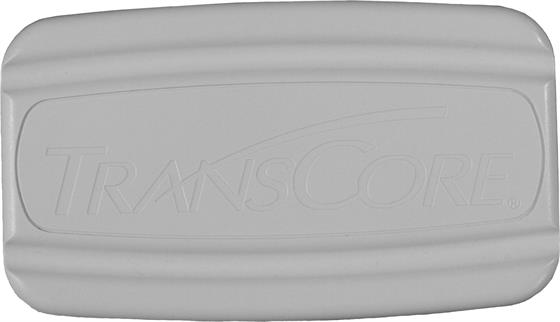

RFID Access Tags

  • Interior mounting on non-metallized windshield
  • Impact resistant, molded plastic case
  • Slim profile
  • Non-battery for extended service life (AT5402)
  • Dual-frequency (915 and 2450 MHz, AT5406)

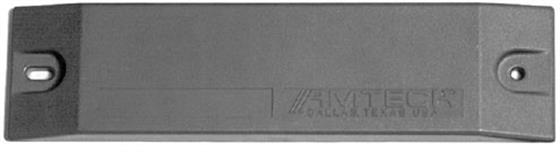

RFID Transportation Tags

  • Harsh environment durability
  • Factory sealed case
  • Non-battery for extended service life (AT5412)
  • Dual-frequency (915 and 2450 MHz, AT5414)

Specifications

Frequency Range:
902 to 928MHz

RF Control:
By sense output or host command

Polarization:
Linear, horizontal

Read Range:
Read performance varies depending on tag and reader configuration and environment
Read range for all the SmartPass E4 Reader is 12 ft (3.7m) typical to 17 ft (3.7m) maximum

I/O Control:
Input: Two independent dry contact closures for sense circuits
Output: Two independent Form-C contacts

Dimensions:
(L x D x W) 15.5 x 15.5 x 3.25 in (39.4 x 39.4 x 8.25 cm)

Weight:
9.5 lb (4.3 kg)

Mounting Surface:
Mount to pole or wall, indoor or outdoor

Enclosure:
Tamper-proof, polycarbonate housing

Operating Temperature:
-40 to 131? F (-40 to 55?C)

Humidity:
100% condensing

Vibration:
0.5 grams, 10 to 500Hz

Input Power:
16-20 VAC, 47-63Hz, or 16-28V DC

Frequency Range:
AT5402: 902 to 928 MHz
AT5406: 902 to 928 MHz/2425 to 2475 MHz

Typical working range with TransCore Encompass 4:
AT5402: 5 to 10 ft (1.5 to 3 m)
AT5406: 5 to 35 ft (1.5 to 11 m)

Polarization:
Parallel with longer side

Data Capacity:
Up to 10 alphanumeric characters (60 available bits) or Wiegand 26- to 54-bit formats

Power Source:
AT5402: Beam-powered
AT5406: Lithium battery

Dimensions:
AT5402: (L x D x W) 3.6 x 2.3 x .27 in (9.2 x 5.9 x .69 cm)
AT5406: (L x D x W) 4.5 x 2.5 x .7 in (11.4 x 6.4 x 1.8 cm)

Weight:
AT5402: 1.4 oz. (40g)
AT5406: 3.5 oz. (99g)

Service Life:
AT5402: >10 years
AT5406: Eight-year lithium battery (typical life)

Case Material:
Weatherproof, polycarbonate alloy, UV stabilized

Mounting Surface:
Interior: Non-metallic windshield

Mounting Method:
Semi-permanent mounting: Double-sided tape
Removable mounting: Adhesive-backed hook-and-loop material attached to the tag and vehicle windshield.

Operating Temperature:
-40 to 185F (-40 to 85C)

Frequency Range:
AT5412: 902 to 928 MHz
AT5414: 902 to 928 MHz/2425 to 2475 MHz

Typical Working Range with TransCore Encompass 4:
AT5412: 5 to 10 ft (1.5 to 3 m)
AT5414: 5 to 35 ft (1.5 to 11 m)

Polarization:
Parallel with longer side

Data Memory Capacity:
SeGo and eGo Modes: 2048 bits
ATA Mode: 60 bits

Power Source:
AT5412: Beam
AT5414: Lithium battery for a typical eight-year life

Dimensions:
AT5412: 9.3 x 2.38 x 0.69 in (23.6 x 6.0 x 1.75 cm)
AT5414: 9.32 x 2.39 x 0.75 in (23.67 x 6.07 x 1.91 cm)

Weight:
AT5412: 5.3 oz (150.2 g)
AT5414: 6.6 oz (187 g)

Case Material:
Weatherproof, polycarbonate, UV-stabilized case that is sealed after programming

Mounting Surface:
Any smooth metallic surface

Mounting Method:
Mount to any flat smooth metal surface using bolts, screws or blind rivets

Operating Temperature:
-40 to 185F (-40 to 85C)

Models

Part #?157184 Product DescriptionTransponder, Transcore Window Tag, Interior Mount half frame beam powered 5 to 30 foot working range. Transcore AT5402
Part #?157185 Product DescriptionTransponder, Transcore Window Tag, Half Frame battery power, 3-35 foot working range Transcore AT5406
Part #?159518 Product DescriptionRFID TAG PROGRAMMING Factory RFID programming for TransCore RFID tags.
Part #?108201 Product DescriptionSMARTPASS 4 RFID READER SmartPass 4 Transcore RFID Reader for ATA Tags 915 MHz, RS232 Half Frame, Full Frame and Wiegand capability, Programable Output, real time clock, tag read buffering
Part #?162431 Product DescriptionTransformer, 110VAC-18VAC SmartPass E4, Power supply
Part #?86401 Product DescriptionCable,ASSY SmartPass 5 Foot With Connector
Part #?162430 Product DescriptionInterface Cable, 20 ft. SmartPass E4 communication/power interface cable
Part #?86403 Product DescriptionCable,ASSY SmartPass 35 Foot With Connector
Part #?162432 Product DescriptionKit, Wall mount bracket For use with TransCore SmartPass E4 reader.
Part #?86399 Product DescriptionTransponder, Transcore Transportation Tag, Half Frame, Beam Powered, 5 To 10 Foot Range AT5412
Part #?157188 Product DescriptionTransponder, Transcore Transporation Tag, Half frame battery powered, 5 – 35 foot working range. Transcore AT5414
