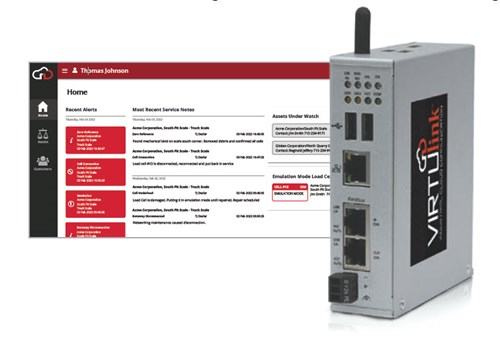

VIRTUlink Cloud Accessible Alerts and Scale Monitoring

$0.00

Rice Lake’s VIRTUlink™ IoT System connects analog platform scales (via iQUBE2) to the cloud, enabling data from networked devices to be utilized for a wide variety of business and operational decisions. By combining the iQUBE2 digital junction box with the latest cloud technology, VIRTUlink provides access to diagnostics and can automate service alerts.

VIRTUlink supports long-term efficiency, and is expandable with support for multiple datapoints from weight indicators, junction boxes, auxiliary equipment, sensors and web relays, and IP cameras.

VIRTUlink-enabled systems can automatically report scale status and individual load cell information. iQUBE2’s unique load cell emulation feature allows it to compensate for a failing load cell until a repair can be made. With an unmatched reaction time, accuracy is brought to new levels.

Download product PDF
Category:

Features

Data

  • Sends raw and analyzed values from the scale to the cloud
  • Supports long-term efficiency by providing scale and throughput records
  • Expandable with support for multiple data points from junction boxes, auxiliary equipment, sensors and IP cameras

Diagnostics

  • Enhanced onboard diagnostics identify cell noise, tests for linearity and zero-reference, and monitors drift
  • Diagnostics are complemented by a unique load cell emulation feature which compensates for a failing load cell until a repair can be made
  • Unmatched reaction time (500 cycles per second) brings accuracy to new levels

Dashboard

  • Online portal to monitor scale status in real-time
  • Receive alert text and/or emails when scale is outside of programmable tolerances
  • Remotely identify service needs and review technician notes
  • Hosted on a cloud platform

Specifications

Communication:
Ethernet TCP/IP

Power Connector:
3-pin terminal block (3.5 mm)

Power Supply:
24 V DC ± 6 V DC

Conformity with UL:
Use Class 2 power source, Over-voltage Category II

Current (at 24 V DC):
170 mA (typical)

Operating System:
Security-hardened Linux

Display:
8 LEDs (2 programmable)

Real-time Clock:
Capacitor buffered, maximum 7 days backup, maintenance free

 Gateway Hardware/ Communication Memory:
Integrated memory 1 GB DDR3 RAM, SD card 32 GB MLC NAND, Micro SD card

IT Interface:
1 x 10/100 Mbit, Microchip LAN9514
1 x RJ45 socket LAN connector

Required Accessible Ports:
http (80)
https (443)
MQTT (1883)
MQTT over SSL (8883)
AMQP (5672)
AMQPS (5671)

Environment Protection:
IP20

Ambient Temperature:
Operation: -20 °C to 60 °C
Storage: -40 °C to 85 °C

Humidity Range:
10% to 95% (95% at 40 °C)
relative humidity (non-condensing)

 Use:
Indoor

Dimensions:
5.5 × 1.38 × 1.13 in
(140 mm x 35 mm x 105 mm)

Weight:
0.89 lb (400 g)

Metal Housing:
DIN top hat rail mount

Approvals:
UL – Nr. E221530 Vol D1
FCC – ID 2ANEG0001
IC – 24152-0001
KCC – No. R-C-HKR-ETP51EN-RE
UL Japan – No. 007-AH0211
RoHS
Conformance with EMC Directives: CE Emission EN 55011:2009
Immunity IEC 61000-6-2/3, EN 61131-2
Electrostatic discharge (ESD)
(air and contact discharge method) EN 61000-4-2
Fast transient interferences (Burst) EN 61000-4-4
Surge voltage EN 61000-4-5

Options

211283 VIRTUlink Annual Service, Cloud-Service

209604 VIRTUlink Gateway, Onboarded. DIN rail design (rail not provided)

215212 Power Supply Kit, VIRTUlink Kit includes: DIN Power Supply, AC cord and DC hookup wires 24VDC Power Supply, Wiring, AC Power cord 12 inches 3 wire

215213 Power Supply,Wall Adapter 90-264 VAC input, 24VDC Output 25W, Blunt End
