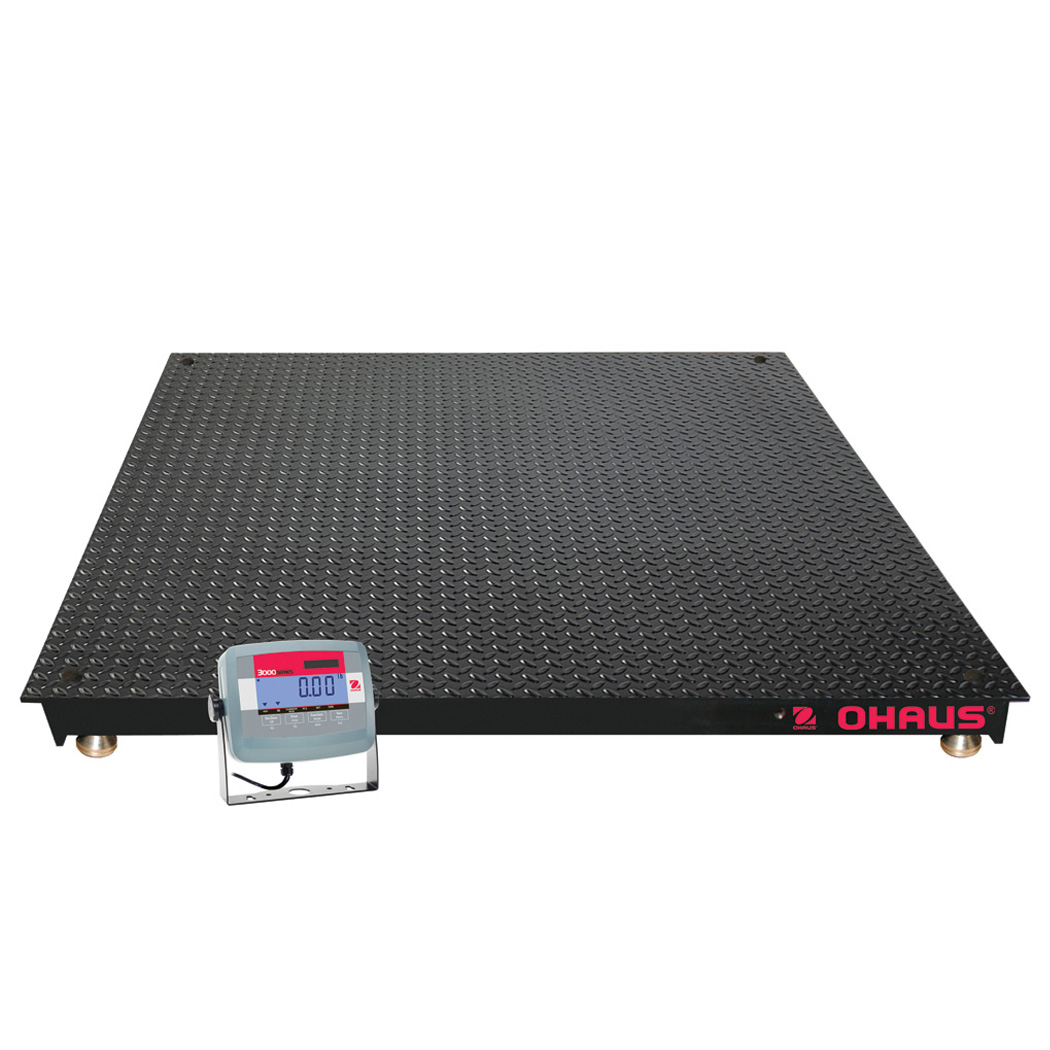

VN Series Floor Scale


Economical Painted Steel Floor Scales for Basic Industrial Applications

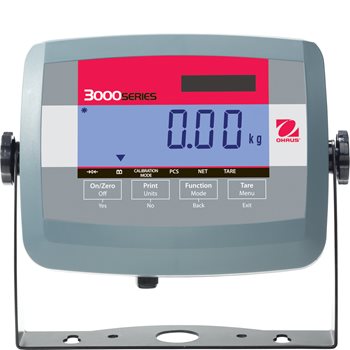

  • The durable VN is constructed of an epoxy painted steel frame, an ABS T31P indicator, NEMA 4X/IP65 sealed stainless steel junction box and IP67 sealed load cells.
  • With a rechargeable lead acid battery included with each VN, position the floor scale freely in the workspace without having to be forced to work near an outlet.

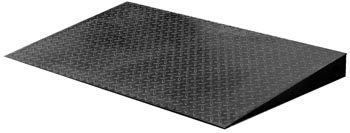

  • Painted steel ramps are available to be added to any VN platform, which provide bottom support ribs that prevent the platform from bending under heavy loads.
Download product PDF


  • Applications? Weighing, Parts Counting
  • Display? Backlit liquid crystal display (LCD)
  • Operation? AC adapter (included) or rechargeable battery (included)
  • Communication? Easy access communication port with RS232 interface
  • Construction? ABS plastic indicator, black painted steel treaded platform, NEMA 4X/IP65 stainless steel junction box with side access, IP67 NTEP alloy steel load cells, two carbon steel eye bolts, four self-swiveling ball-in-cup feet, black painted steel ramps and fixed location foot mounting plate kits (accessories sold separately)
  • Design Features? 125% overload protection


  • Indicator Options
Compact Dot Matrix Impact Printer? 80252042
Compact Thermal Printer? 80251992
Ohaus Collect Software? 80500746
TAL Software WinWedge? SW12W
Paper for Printer, 80252042 (1 roll)? 80251932
Ribbon for Printer, 80252042? 80251933
RS232 Cable & Adapter, 80252042
Printer to T31P? 80252571
RS232 Cable, PC 9-pin to T31P? 80500525
RS232 Cable, PC 25-pin to T31P? 80500524
  • Base Options
? Ramps
4? or 5? wide? with? foot mounting? plates
? Fixed Location
Foot Mounting Plate Kits? Set of 2


  • Model #:? VN31P5000L? Maximum Capacity? 5,000 lb (2,200 kg)? Readability? 1 lb (0.5 kg)? Readability (Certified)? 1 lb (0.5 kg)
  • Model #:? VN31P5000X? Maximum Capacity? 5,000 lb (2,200 kg)? Readability? 1 lb (0.5 kg)? Readability (Certified)? 1 lb (0.5 kg)
