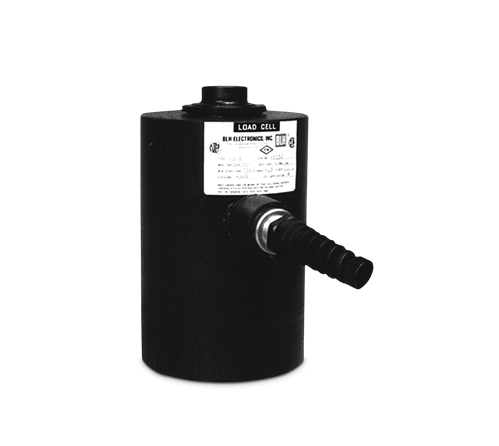

VPG BLH C2P1 Alloy Steel, Compression Canister Load Cell

21625 Load Cell,CSR C2P1-20K 20,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH

21626 Load Cell,CSR C2P1-50K 50,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH

21627 Load Cell,CSR C2P1-100K 100,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH

21628 Load Cell,CSR C2P1-200K 200,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH

Category:

Features

Single-column design with low deflection and trouble-free operation. High alloy steel and epoxy coated for use in harsh environments. Compact and rugged. NTEP Certified capacities range from 20,000 lb to 200,000 lb; non-NTEP Certified capacity of 300,000 lb. Complete with 10 or 35 ft of load cell cable.

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
High-alloy steel, epoxy coated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
NEMA Type 6 Environmentally sealed, IP67

 Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (20 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
20,000 lb: 0.0075 in
30,000 lb: 0.0075 in
50,000 lb: 0.0065 in
100,000 lb: 0.0075 in
200,000 lb: 0.0070 in
300,000 lb: 0.012 in

 Cable Length:
10 ft
35 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
Three-year limited

Approvals:
NTEP
FM
