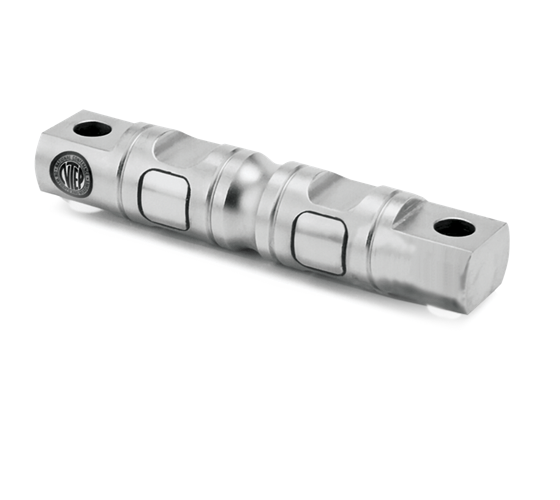

VPG Revere 5103 Alloy Steel, Double-Ended Beam Load Cell

$0.00

Designed for truck, track, and process weighing. High accuracy, low profile, tolerance to non-axial loading and redundant seal. NTEP Certified capacities range from 5,000 lb to 250,000 lb (2,268.0 kg to 113,398.4 kg). Complete with 30 ft (9.2 m) of load cell cable.

Download product PDF
Categories: ,

Models

34494 Load Cell,DEB 5103-B10- 5k-30P1 5000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34495 Load Cell,DEB 5103-B10- 10k-30P1 10,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34496 Load Cell,DEB 5103-B10- 20k-30P1 20,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34497 Load Cell,DEB 5103-B10- 30k-30P1 30,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34498 Load Cell,DEB 5103-B10- 40k-30P1 40,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34499 Load Cell,DEB 5103-B10- 50k-30P1 50,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
34500 Load Cell,DEB 5103-B10- 60k-30P1 60,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
159506 Load Cell, DEB 5103-B10- 75k-30P1R 75000lb 30ft RTI 3mv/v 700 Ohm WW NTEP IIIL 10M FM IP67
34501 Load Cell,DEB 5103-B10- 100k-30P1 100,000lb 30ft RTI 3mV/V 700 OHM WW NTEP IIIL 10m FM IP67
7292 Load Cell,DEB 5103-B10- 150k-30P1 150,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM IP67 WW RTI
17293 Load Cell,DEB 5103-B10- 200k-30P1 200,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM IP67 WW RTI
17294 Load Cell,DEB 5103-B10- 250k-30P1 250,000lb 30ft 3mv/v 700 Ohm NTEP IIIL 10M FM IP67 WW RTI
