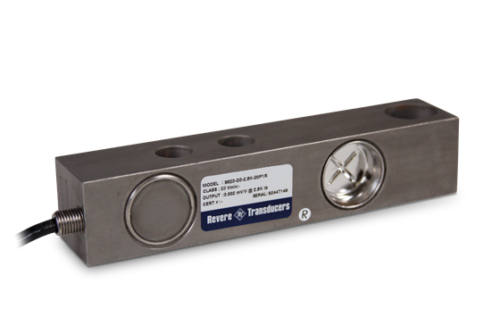

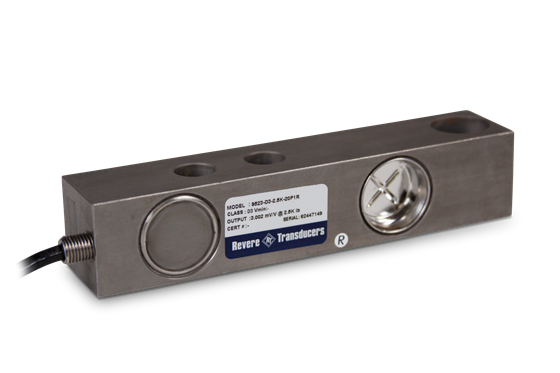

VPG Revere 9523 Stainless Steel, Single-ended Beam Load Cell

$0.00

Single-ended beam offers both welded sealing and stainless steel construction for use in most hostile environments. Applications include platform scales and process weighing. Capacities range from 1,000 lb to 10,000 lb (453.6 kg to 4,535.9 kg).

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5- 10 VDC (15 V maximum)

Non-repeatability:
0.01% full scale

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
1,000 lb=0.016 in (0.4 mm)
2,500 lb=0.03 in (0.8 mm)
4,000 lb=0.041 in (1.0 mm)
5,000 lb=0.035 in (0.9 mm)
10,000 lb=0.042 in (1.1 mm)

Cable Length:
20 ft (6.1 m)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus

Models

17221 Load Cell,SEB 9523-D3-1K- 20P1 1000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI
17222 Load Cell,SEB 9523-D3- 2.5K-20P1 2500lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI
17223 Load Cell,SEB 9523-D3-4K- 20P1 4000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI
17224 Load Cell,SEB 9523-D3-5K- 20P1 5000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI
17225 Load Cell,SEB 9523-D3-10K -20P1 10,000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST WS RTI
