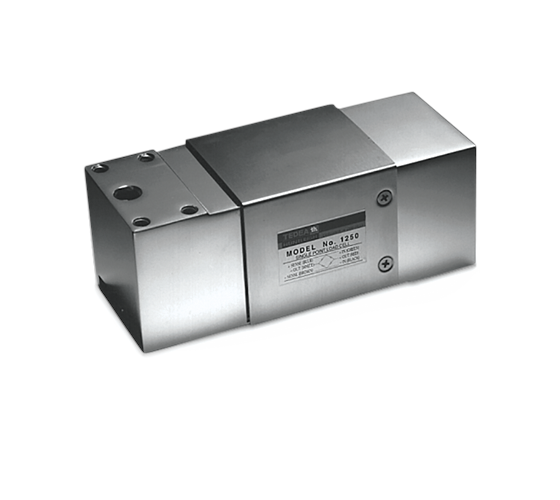

VPG Tedea-Huntleigh 1250 Aluminum, Single Point Load Cell

$0.00

High-capacity, off-center loading load cell accurately weighs loads from 50 kg to 1,000 kg (110.2 lb to 2,205 lb). Long-term stability and durability are maintained. Load cells with potted cavities are available for improved performance in damp environments.

Download product PDF
Categories: ,

Models

17478 Load Cell,SPT 1250-50kg 50kg 10ft 2mv/v 350 Ohm NTEP III 5 S FM AL Class F Potted TH
17469 Load Cell,SPT 1250-75kg 75kg 10ft 2mv/v 350 Ohm NTEP III 5 S FM AL Class F Potted TH
33711 Load Cell,SPT 1250-100kg 100kg 10ft TH 2mV/V 350 OHM NTEP III 5 S FM AL Potted
33712 Load Cell,SPT 1250-150kg 150kg 10ft TH 2mV/V 350 OHM NTEP III 5 S FM Al Potted
33713 Load Cell,SPT 1250-200kg 200kg 10ft TH 2mV/V 350 OHM NTEP III 5 S FM Al Potted
33714 Load Cell,SPT 1250-250kg 250kg 10ft TH 2mV/V 350 OHM NTEP III 5 S FM Al Potted
33715 Load Cell,SPT 1250-300kg 300kg 10ft TH 2mV/V 350 OHM NTEP III 5 S FM Al Potted
33716 Load Cell,SPT 1250-500kg 500kg 10ft TH 2mV/V 350 OHM NTEP III 5 S FM Al Potted
33717 Load Cell,SPT 1250-635kg 635kg 10ft TH 2mV/V 350 OHM NTEP III 5 S FM Al Potted
17480 Load Cell,SPT 1250-1000kg 1000kg 10ft 2mv/v 350 Ohm FM AL NTEP III 5 S Class F Potted TH
