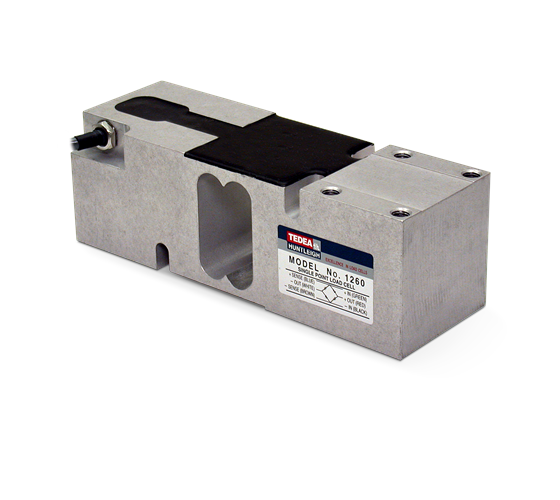

VPG Tedea-Huntleigh 1260S Aluminum, Single Point Load Cell

$0.00

This single-point, off-center loading, aluminum load cell is designed for high-capacity applications and harsh environments. NTEP Certified to 10,000 divisions. Capacities range from 75 kg to 635 kg (165.4 lb to 1,399.9 lb). Complete with 10 ft (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Models

76395 Load Cell,SPT 1260S-75kg 10ft TH 2mV/V 350 OHM NTEP III 10 S FM AL IP67
76396 Load Cell,SPT 1260S-100kg 10ft TH 2mV/V 350 OHM NTEP III 10 S FM AL IP67
76397 Load Cell,SPT 1260S-150kg 10ft TH 2mV/V 350 OHM NTEP III 10 S FM AL IP67
76398 Load Cell,SPT 1260S-200kg 10ft TH 2mV/V 350 OHM NTEP III 10 S FM AL IP67
76399 Load Cell,SPT 1260S-250kg 10ft TH 2mV/V 350 OHM NTEP III 10 S FM AL IP67
76400 Load Cell,SPT 1260S-300kg 10ft TH 2mV/V 350 OHM NTEP III 10 S FM AL IP67
76401 Load Cell,SPT 1260S-500kg 10ft TH 2mV/V 350 OHM NTEP III 10 S FM AL IP67
76402 Load Cell,SPT 1260S-635kg 10ft TH 2mV/V 350 OHM NTEP III 10 S FM AL IP67
