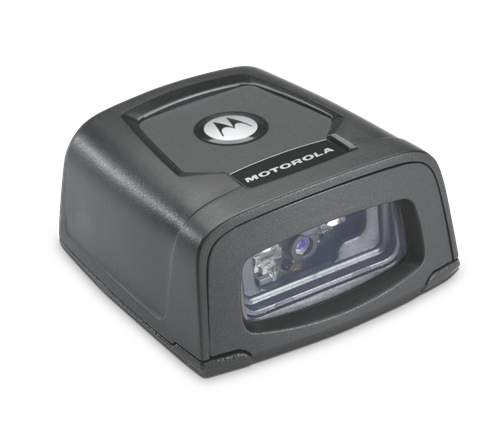

Zebra DS457 Omnidirectional Laser Scanner

$0.00

Download product PDF
Category:

Features

  • High-speed omnidirectional scan pattern
  • Rugged, durable housing
  • Reads 1D and 2D symbols
  • Supports 123Scan2 configuration tool
  • Enables rapid and easy customized setup through a free, wizard-based PC software tool
  • Scans any bar code on paper, mobile phones and computer displays

Specifications

Symbology Decode Capability:
1D – All major 1D bar codes
2D – PDF417, DataMatrix, QR Code, Aztec,
Composite Codes and MaxiCode
Postal – US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal

Dimensions:
(L × W × H)
2.44 × 2.30 × 1.15 in
(6.20 × 5.84 × 2.92 cm)

Weight:
3.9 oz (111 g)

Communications:
Interfaces supported: 9-pin male D-sub USB (full speed) and TTL level RS-232 with RTS and CTS

Performance Characteristics:
Sensor resolution: 752 (H) × 480 (V) gray scale
Imager field of view DS457 SR: 39.6° horizontal, 25.7° vertical
Aiming element: 655 ± 10 nm (VLD)
Illumination element: 625 ± 5 nm (LED)

Power Maximum:
5 VDC +/- 10% at 450 mA

Operating Temperature:
-4 °F to 122 °F (-20 °C to 50 °C*) *Laser aimer disabled above 113 °F (45 °C)

Temperature Range:
Storage: -40 °F to 158 °F (-40 °C to 70 °C)
85% RH, non-condensing at 158 °F (70 °C)

Humidity:
95% RH, non-condensing at 122 °F (50 °C)

IP Rating:
IP54

Drop Resistance:
Withstands multiple 30 in (76 cm) drops to concrete

Image File Formats:
BMP, TIFF, JPG

Regulatory:
Electrical Safety ETL, VDE, CETL, EN60950, Ctick, VCCI
Laser Classification Intended for use in CDRH Class II/IEC 825 Class I devices
EMI/RFI FCC Part 15 Class B, ICES-003 Class B, CISPR22 Class B

Warranty:
Three-year limited
(against defects in workmanship and materials)
