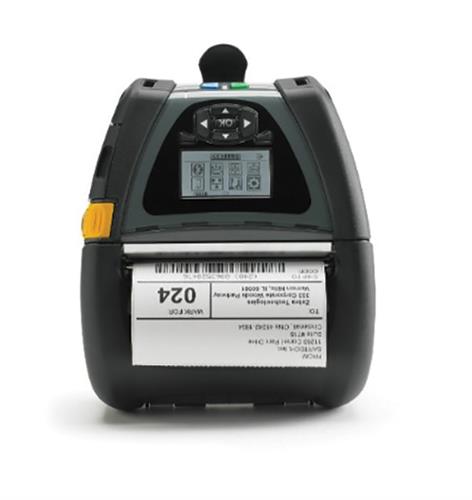

Zebra QLn420 Mobile Printer

The Zebra QLn420 Mobile Printer easily integrates to existing networks and connects to popular devices for durable, wireless printing.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Category:

Features

  • Apple iOS, Android, Windows Mobile and BlackBerry connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL? and ZPL programming languages
  • 256 MB Flash memory supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)
  • PowerPrecision+ 4900 mAh Li-Ion rechargeable battery
  • Built-in battery charger
  • Serial and USB ports (both support strain relief)
  • Belt clip for unobtrusive and convenient printing
  • Black mark and gap media sensing using fixed center-position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy dispensing
  • Center-loading media locking for variable roll widths
  • ?Clamshell? design for easy media loading
  • Management: Mirror, SNMP, Web server, Profile Manager, AirWatch and Wavelink Avalanche
  • Large, easy-to-read LCD control panel (240 x 128 pixels)
  • LCD can be customized using WML (text and icons)
  • Printer alerts on the display, help menus
  • Tolerance of multiple drops from 6′ / 1.8 m to concrete
  • IP43 dust- and water-resistance rating (IP54 with soft case)
  • 400 MHz 32-bit ARM processor
  • XML support
  • Supports vertical and horizontal printing
  • Printers can be used in any orientation
  • QR barcode links to web-based help pages
  • Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with NFC-enabled devices
  • Label odometer
  • NTP (Network Time Protocol) support via WiFi or Ethernet

Request More Information

Specifications

Paper Width:
4.40 in

Paper Thickness:
3.2 mil to 7.5 mil

Paper Diameter (OD):
2.6 in

Paper Roll Shaft:
0.75 in

Resolution:
203 dpi

Memory:
128 MB RAM / 256 MB Flash

Print Width:
4.10 in

Bar Code Symbologies:
Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, UCC/EAN 128, UPC-A, UPC-E, PDF417, Micro PDF417, QR Code, TLC39

Maximum Print Length:
32 in

Maximum Print Speed:
4 ips

Media Sensors:
Black mark, Gap

Interface:
RS-232, USB, WiFi, Bluetooth

Operating Characteristics:
Operating temperature: -4? F to 122? F
(-20? C to 50? C)

Approvals:
CE, UL, TUV, CSA

Physical Characteristics:
Width: 6.5 in
Height: 7.35 in
Depth: 3.25 in
Weight: 2.45 lb

Warranty:
One-year warranty

Options

Part #181233 Product DescriptionPower Supply, 12-24 VDC For QLn420 Zebra
Part #181236 Product DescriptionPower Supply, QLn420 Li-Ion DC/Dc 15-60 VDC adapter (for use with forklifts) Zebra
Part #181234 Product DescriptionKit, Handi-Mount QLn420 Includes RAM Mount Arm and Base Plate
Part #188144 Product DescriptionAC POWER SUPPLY, QLn420 US PLUGS. CONNECTS THE PRINTER (OR CHARGING CRADLE) TO AC POWER TO CHARGE INTERNAL PRINTER BATTERY. 100 TO 240 VAC, 50-60 Hz
Part #188145 Product DescriptionRECEIPT PAPER, QLn420 DIRECT THERMAL, 4 INCH WIDE x 975 INCH LONG. NON-PERFORATED, 3.2 MIL THICKNESS. PRICE PER ROLL

Cables

Part #181235 Product DescriptionCable, RS-232 PC-DB9 6 foot straight AP DPT QLn420 Zebra

Models

Part #?181232Product DescriptionPrinter, Mobile QLn420 BT 3.0 radio+ MFi USB RS-232 Zebra
