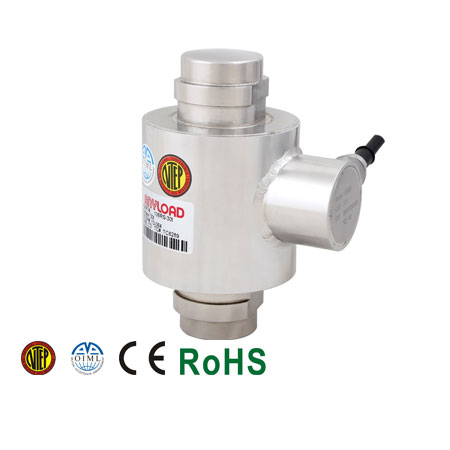

106RS Canister Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 30t, 40t, 50t
- Full Scale Output: 2mV/V ± 0.1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
- OIML MAA C3, Y=16 000 certified from 10t-50t
- CE and RoHS certified
Download product PDF
Features
Coti Global………………………………………………CG-26S6
FAIRBANKS……LCF HR4020-2A(30t), part number 70510
FLINTEC……………………………………………………….RCS
Specifications
| Rated Capacity |
30t, 40t, 50t |
| Full Scale Output |
2mV/V ± 0.1% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.023% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.020% |
| Creep in 30 minutes |
< ± 0.020% |
| Input Resistance |
1150Ω ± 50Ω |
| Output Resistance |
1000Ω ± 2Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0017% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0028% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
-30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Welded seal |
| IP Rating |
IP68 |
