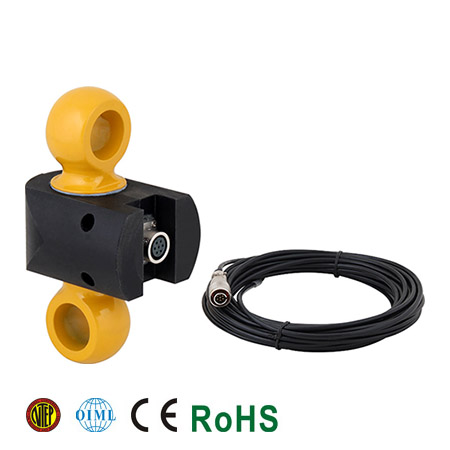

110RH, 110RH-ST Tension Link or Dynamometer
$0.00
- Material: Alloy steel with PVC Protection
- Rated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 200% of full scale
- Breaking Overload: 500% of full scale
- IP Rating: IP67
- NTEP 1:3000 Class III, Single Cell certified from 500kg-3t
- NTEP 1:5000 Class III, Multiple Cell certified from 500kg-3t
- NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
- OIML MAA C3, Y=15 000 certified from 1t-10t
- OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
- CE and RoHS certified
Download product PDF
Specifications
| Rated Capacity |
500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t |
| Full Scale Output |
2mV/V ± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.03% |
| Repeatability |
< ± 0.03% |
| Hysteresis Error |
< ± 0.03% |
| Creep in 30 minutes |
< ± 0.03% |
| Input Resistance |
1100Ω ±50Ω |
| Output Resistance |
1000Ω ± 10Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.004% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.005% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
–30°C to 70°C/-22°F to 158°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
200% of full scale |
| Breaking Overload |
500% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP67 |
