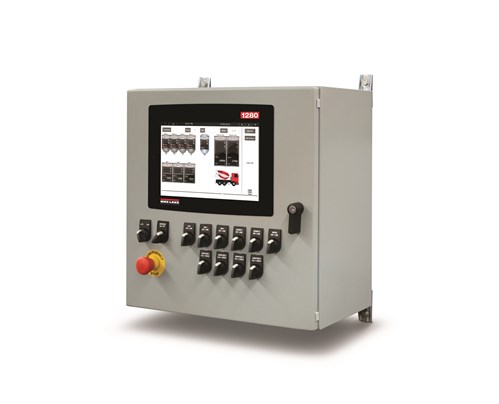

1280 FlexWeigh Systems Concrete Batcher

$0.00

The power of the 1280 Enterprise Series indicator provides an easy-to-configure concrete batching system for small or portable concrete plants. The large color touchscreen makes it easy for operators to monitor material levels and access records for hundreds of mixes, customers, and tickets.

The 1280 Enterprise concrete batching system adds efficiency to concrete mixing processes. Operators can view material levels from two or five scales, and manually edit material amounts and moisture compensation percentages for complete batching control

Download product PDF
Category:

Features

  • Powered by 1280 Enterprise Series indicator
  • Large 12-in color touchscreen display
  • Remote batching through web server integration
  • Front panel control switches and emergency stop
  • Automatic or manual batching modes
  • Configurable from two to five scales (one to two cement scales, and one to three material bins)
  • Up to four admixes (bottled or direct)
  • Manual entry of moisture compensation percentage
  • Metered water controlled by onboard DIO
  • Import/export databases via USB, Revolution® or Interchange software
  • Configurable batch transaction ticket
  • Storage for 1,000 transactions, 1,000 mix designs, 500 customers
  • Available with English or Spanish operation and in imperial or metric measurements

Specifications

Power:
100 to 240 VAC; 50/60 Hz

Excitation Voltage:
10 ± 0.5 VDC
16 x 350 ohm or 32 x 700 ohm load cells per A/D card

Analog Signal Input Range:
-60 mV to 60 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5  to 120 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
± 0.01% full scale

 Communication Ports:
Port 1 & 2: Full duplex RS-232 with CTS/RTS, RS-422/485
Baud Rate: 1200 to 115200
Port 3: USB 2.0 Device (Micro)
USB Host: (2) Type A Connectors max 500 mA
Ethernet: Wired 10/100 Auto-MDX
Ethernet: Wireless 802.11 b/g/n 2.4GHz

On board:
Selectable filters: Three stage, adaptive or damping
Embedded Linux® OS
8 GB eMMC (system use)
1 GB DDR3 RAM
460 MB onboard database (SQLite) storage
Up to 32 GB micro SD card



 Display:
Twelve-inch, 1280 × 800 pixel,
1,500 NIT

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -4 °F to 131 °F (-20 °C to 55 °C)

Rating/Material:
Painted mild steel enclosure
NEMA Type 4; IP66

Dimensions:
20 × 20 × 8 in

Warranty:
Two-year limited

EMC Immunity:
EN 50082 Part 2 IEC
EN 61000-4-2, 3, 4, 5, 6, 8, 11

Options

208907 1280 FlexWeigh System Decumulative Concrete Batcher, 20 x 20 x 10 in Painted Mild Steel Enclosure, IP66 Rated, Includes Front Panel Switches and Relays. Batching Application Available in English or Spanish
216733 1280 FlexWeigh System Accumulative Concrete Batcher, 20″ x 20″ x 10″ painted mild steel enclosure, IP66 rated, includes front panel switches and relays. Batching application available in English or Spanish.
