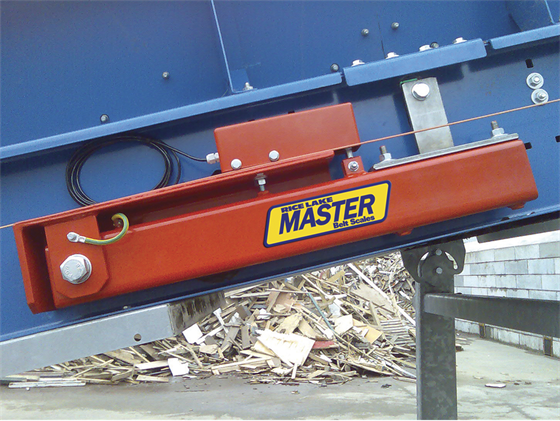

221DB Master Belt Scale Weigh Frame

$0.00

The 221DB is suitable for most belt widths and capacities and is ideal in various market segments.

Download product PDF
Category:

Features

  • Weigh frame is mounted on outside of conveyor
  • Minimum modifications to conveyor are required
  • Service friendly
  • Friction-free pivot supports
  • Two support beams
  • Fits standard conveyors – mounts with four bolts per assembly

Specifications

Conveyor Width:
18 in to 72 in?(457 mm to 1,829 mm)

Capacity:
3,300 tons per hour

Maximum Belt Speed:
800 feet per minute (4 m/s)

Inclination:
Maximum 25 degrees

Material:
Powder coated mild steel

Accuracy System:
0.5-1%

Load Cell:
RLHBB: 50 kg, 100 kg, 200 kg
Junction Box:
JB4SS
Warranty:
One-year limited warranty

Options

  • Galvanized or stainless constructiony
