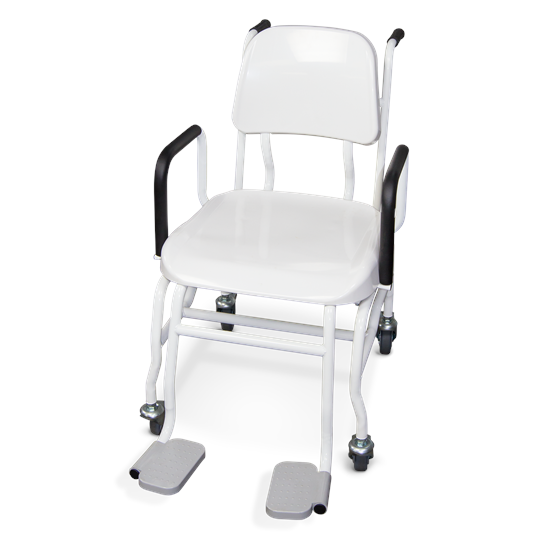

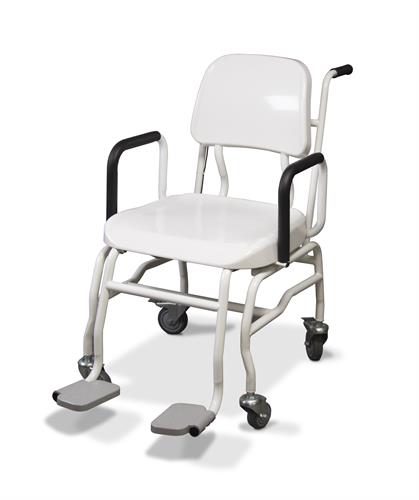

560-10-1 Digital Chair Scale


Rice Lake?s 560 digital chair scale is efficiently designed for accurate and repeatable measurements for patients who find it difficult to walk or stand.

Download product PDF
Categories: ,


  • Enameled tubular steel frame
  • Four heavy-duty caster wheels (rear wheels locking)
  • Lift-away arms
  • One and a half foot wide molded plastic seat
  • Side-folding footrests

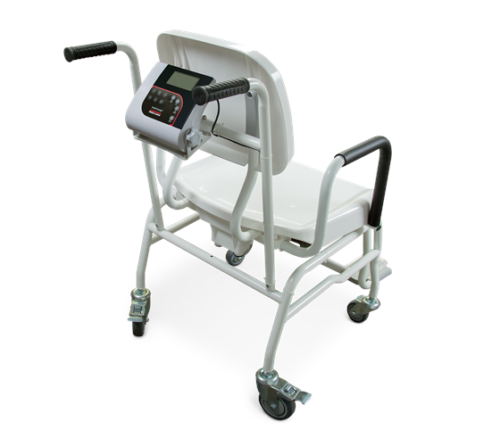

  • Push-button LCD display
  • BMI (body mass index) function
  • Hold function
  • Units of measure: lb only, kg only, lb/kg
  • Motiontrap? movement compensation technology
  • EHR capable


660 lb x 0.2 lb (300 kg x 0.1 kg)

9 VDC provided by six AA alkaline batteries (included) or 120 V/230 VAC adaptor (optional)

5-digit LCD display, 0.75 in (1.9 mm) digit height

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Two-year limited warranty


133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.3A max, UL approved
102508 Adapter,220VAC AC Healthweigh 9VDC 500MA
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson
186830 Cable Assembly, RS-232 Scale to Printer, 6ft, 25-pin D-Sub male to RJ-45


Part #?166644 Product DescriptionScale, Chair Model 560-10-1 660lb(300kg) x 0.2lb(100g) includes ABS seat, lift away armrests, foldable footrests, 4 swivel wheels (rear lockable)
