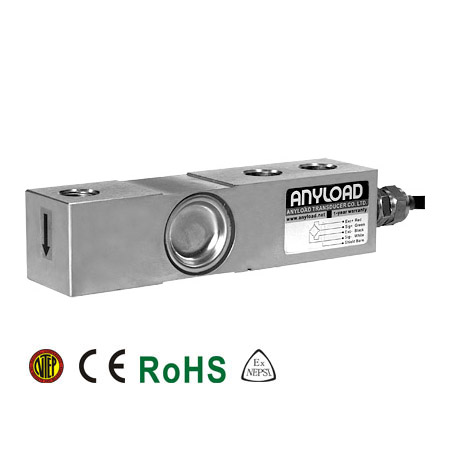

563YSGS Single Ended Beam Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb, 15Klb, 20Klb, 500kg, 1t, 2t, 3t, 5t, 10t, 20t
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10Klb
- CE, RoHS and Ex certified
Download product PDF
Specifications
| Rated Capacity |
1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 500kg, 1t, 2t, 3t, 5t, 10t, 20t |
| Full Scale Output |
3mV/V ± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.017% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.017% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
400Ω ± 20Ω for kg; 350Ω ± 7Ω for lb |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP67 |
