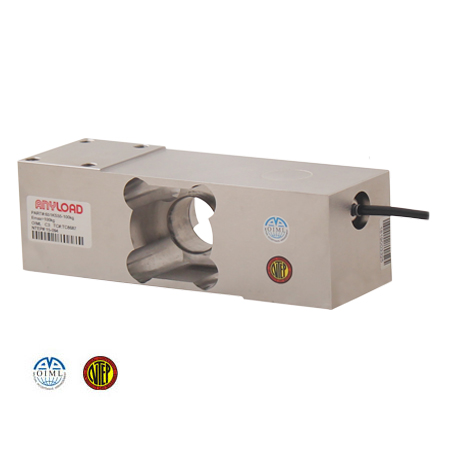

651KS55 Single Point Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: 100kg
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP68
Download product PDF
Features
HBM…………………………….PW16, metric thread version*
Mettler Toledo……………………………………………MT1260
Vishay Tedea-Huntleigh………PW16, metric thread version*MT1260 1260, metric thread version*
* HBM PW16, Mettler Toledo MT1260, and Vishay
Tedea-Huntleigh1260 are made of aluminum.
Specifications
| Rated Capacity |
100kg |
| Reference Max. Platform Size |
610x700mm |
| Full Scale Output |
2mV/V ± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.03% |
| Repeatability |
< ± 0.02% |
| Hysteresis Error |
< ± 0.03% |
| Creep in 30 minutes |
< ± 0.02% |
| Input Resistance |
1100Ω ± 50Ω |
| Output Resistance |
960Ω ± 50Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Welded seal |
| IP Rating |
IP68 |
