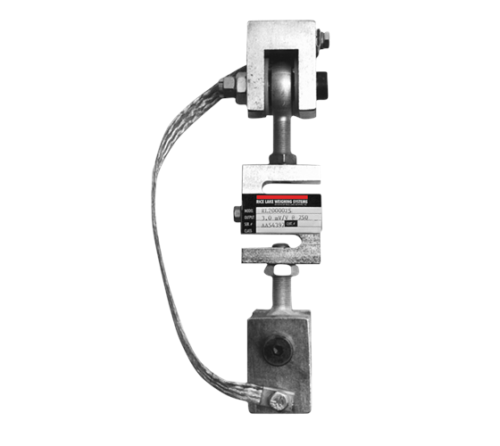

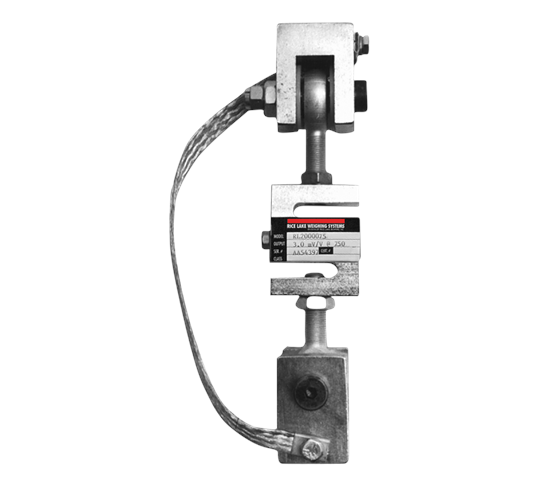

ITCM Isolated Tension Cell Module

$0.00

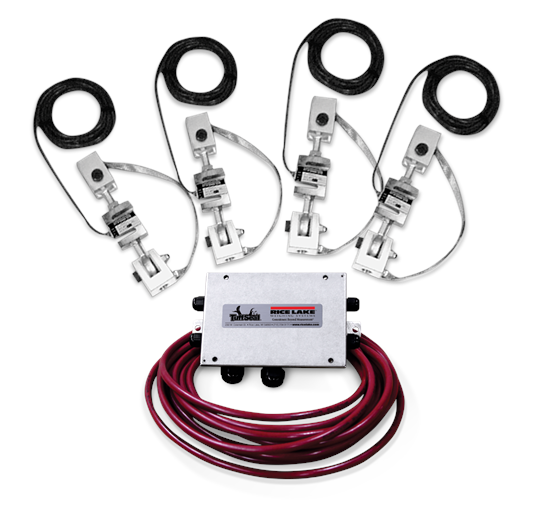

Complete Kit Includes:

  • Three or four ITCM assemblies with RL20000 NTEP Certified S-beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of our hostile environment EL147HE SURVIVOR® load cell cable

Standard Features:

  • Capacities (per module): 100-20,000 lb (45.4-9,071.1 kg)
  • Clevis mounts with nylon insulating washers
  • PTFE-lined rod-end ball joints
  • Load cell is completely isolated from stray currents*
  • Grounding strap provides alternative path to ground
  • Complete package for ease of installation
  • Provides correct load cell loading even in difficult installations
  • Lower overall height compared to other isolated tension assemblies
  • Zinc-plated clevis assemblies
  • Excluding 20,000 lb (9071.9 kg) capacity
Download product PDF

Features

Capacities (per module): 100lb-20,000lb
(45.4kg-9,071.1kg)
• Clevis mounts with nylon insulating washers
• PTFE-lined rod-end ball joints
• Load cell is completely isolated from
stray currents*
• Grounding strap provides alternative
path to ground
• Complete package for ease of installation
• Provides correct load cell loading even
in difficult installations
• Lower overall height compared to other isolated
tension assemblies
• Zinc-plated clevis assemblies
*Excluding 20,000 lb (9,071.9 kg) capacity

Specifications

Applications
• Suspended hoppers and tanks
• Mechanical scale conversions
• Use as a single module or in multiples
Complete Kit Includes
• Three or four ITCM assemblies with RL20000
NTEP Certified s-beam load cells
• One JB4SS NEMA Type 4X stainless steel signal
trim junction box
• 25ft of our hostile environment EL147HE
SURVIVOR® load cell cable

Models

3-Module Kit

18003 Mount Kit,ITCM 3EA 100 lb 3/8-16NC Mild Steel Zinc Plated Tension INCL RL20000-100 lb And JB4SS
18004 Mount Kit,ITCM 3EA 100 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-100 lb And JB4SS
30357 Mount Kit,ITCM 3EA 150 lb 3/8-16NC Mild Steel Zinc Plated Tension INCL RL20000-150LB And JB4SS
30358 Mount Kit,ITCM 3EA 150 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-150LB And JB4SS
30361 Mount Kit,ITCM 3EA 200 lb 3/8-16NC Mild Steel Zinc Plated Tension INCL RL20000-200LB And JB4SS
30362 Mount Kit,ITCM 3EA 200 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-200LB And JB4SS
18005 Mount Kit,ITCM 3EA 250 lb 3/8-16NC Mild Steel Zinc Plated Tension INCL RL20000-250 lb And JB4SS
18006 Mount Kit,ITCM 3EA 250 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-250 lb And JB4SS
18007 Mount Kit,ITCM 3EA 500 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb And JB4SS
18008 Mount Kit,ITCM 3EA 500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb And JB4SS
18009 Mount Kit,ITCM 3EA 500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb And JB4SS
18010 Mount Kit,ITCM 3EA 750 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb And JB4SS
18011 Mount Kit,ITCM 3EA 750 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb And JB4SS
18012 Mount Kit,ITCM 3EA 750 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb And JB4SS
18013 Mount Kit,ITCM 3EA 1,000 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb And JB4SS
18014 Mount Kit,ITCM 3EA 1,000 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb And JB4SS
18015 Mount Kit,ITCM 3EA 1,000 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb And JB4SS
18016 Mount Kit,ITCM 3EA 1,500 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-1,500 lb And JB4SS
18017 Mount Kit,ITCM 3EA 1,500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-1,500 lb And JB4SS
18018 Mount Kit,ITCM 3EA 1,500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-1,500 lb And JB4SS
18019 Mount Kit,ITCM 3EA 2,000 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-2,000 lb And JB4SS
18020 Mount Kit,ITCM 3EA 2,000 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-2,000 lb And JB4SS
18021 Mount Kit,ITCM 3EA 2,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-2,000 lb And JB4SS
18022 Mount Kit,ITCM 3EA 2,500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-2,500 lb And JB4SS
18023 Mount Kit,ITCM 3EA 2,500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-2,500 lb And JB4SS
30365 Mount Kit,ITCM 3EA 3,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-3,000LB And JB4SS
18024 Mount Kit,ITCM 3EA 5,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-5,000 lb And JB4SS
18025 Mount Kit,ITCM 3EA 5,000 lb 1-8NC Mild Steel Zinc Plated Tension INCL RL20000-5,000 lb And JB4SS
18026 Mount Kit,ITCM 3EA 10,000 lb 1-8NC Mild Steel Zinc Plated Tension INCL RL20000-10,000 lb And JB4SS
30353 Mount Kit,ITCM 3EA 15,000 lb 1-1/4-7NC Mild Steel Zinc Plated Tension INCL RL20000-15,000LB And JB4SS
30355 Mount Kit,ITCM 3EA 20,000 lb 1-1/2-6NC Mild Steel Zinc Plated Tension INCL RL20000-20,000LB And JB4SS

4-Module Kit

18027 Mount Kit,ITCM 4EA 100 lb 3/8-16NC Mild Steel Zinc Plated Tension INCL RL20000-100 lb And JB4SS
18028 Mount Kit,ITCM 4EA 100 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-100 lb And JB4SS
30359 Mount Kit,ITCM 4EA 150 lb 3/8-16NC Mild Steel Zinc Plated Tension INCL RL20000-150LB And JB4SS
30360 Mount Kit,ITCM 4EA 150 lb lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-150LB And JB4SS
30363 Mount Kit,ITCM 4EA 200 lb 3/8-16NC Mild Steel Zinc Plated Tension INCL RL20000-200LB And JB4SS
30364 Mount Kit,ITCM 4EA 200 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-200 lb and JB4SS
18029 Mount Kit,ITCM 4EA 250 lb 3/8-16NC Mild Steel Zinc Plated Tension INCL RL20000-250 lb And JB4SS
18030 Mount Kit,ITCM 4EA 250 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-250 lb And JB4SS
18031 Mount Kit,ITCM 4EA 500 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb And JB4SS
18032 Mount Kit,ITCM 4EA 500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb And JB4SS
18033 Mount Kit,ITCM 4EA 500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb And JB4SS
18034 Mount Kit,ITCM 4EA 750 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb And JB4SS
18035 Mount Kit,ITCM 4EA 750 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb And JB4SS
18036 Mount Kit,ITCM 4EA 750 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb And JB4SS
18037 Mount Kit,ITCM 4EA 1,000 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb And JB4SS
18038 Mount Kit,ITCM 4EA 1,000 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb And JB4SS
18039 Mount Kit,ITCM 4EA 1,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb And JB4SS
18040 Mount Kit,ITCM 4EA 1,500 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-1,500 lb And JB4SS
18041 Mount Kit,ITCM 4EA 1,500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL2000-1,500 lb And JB4SS
18042 Mount Kit,ITCM 4EA 1,500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-1,500 lb And JB4SS
18043 Mount Kit,ITCM 4EA 2,000 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-2,000 lb And JB4SS
18044 Mount Kit,ITCM 4EA 2,000 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-2,000 lb And JB4SS
18045 Mount Kit,ITCM 4EA 2,000 lb 3/4-10NC Mild Steel Zinc Plated Tension RL20000-2,000 lb And JB4SS
18046 Mount Kit,ITCM 4EA 2,500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-2,500 lb And JB4SS
18047 Mount Kit,ITCM 4EA 2,500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-2,500 lb And JB4SS
30366 Mount Kit,ITCM 4EA 3,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-3,000LB And JB4SS
18048 Mount Kit,ITCM 4EA 5,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-5,000 lb And JB4SS
18049 Mount Kit,ITCM 4EA 5,000 lb 1-8NC Mild Steel Zinc Plated Tension INCL RL20000-5,000 lb And JB4SS
18050 Mount Kit,ITCM 4EA 10,000 lb 1-8NC Mild Steel Zinc Plated Tension INCL RL20000-10,000 lb And JB4SS
30354 Mount Kit,ITCM 4EA 15,000 lb 1-1/4-7NC Mild Steel Zinc Plate Tension INCL RL20000-15,000LB And JB4SS
30356 Mount Kit,ITCM 4EA 20,000 lb 1-1/2-6NC Mild Steel Zinc Plated Tension INCL RL20000-20,000LB And JB4SS
