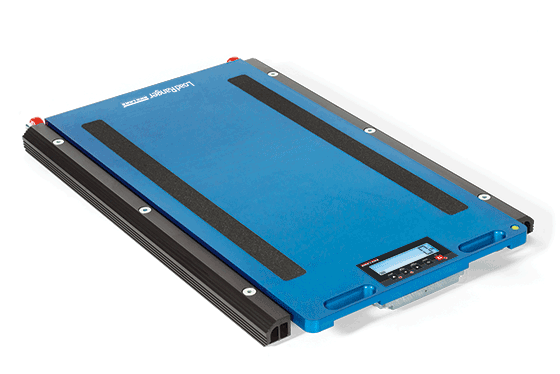

Load Ranger Wheel Pad Scale


Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth and 2.4 GHz wireless communication. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. Load Ranger can be completely wireless with six individual weigh pads with integrated weight displays and an optional remote weight indicator, or systems can include up to 14 weigh pads joined via cable with wireless capability to an optional remote indicator. Load Ranger is adaptable for many applications and provides quick axle and weight readouts.

Download product PDF


  • Up to six individual pads (three sets) per system, completely wireless
  • 14 individual pads (seven sets) per system maximum, joined via cable, wireless communication to indicator
  • Equipped with industrial Bluetooth radio module for ability to communicate with indicator
  • Integrated wheels for easy transport and positioning
  • Internal rechargeable battery with 40 hours of battery life
  • Nonslip rubber on underside of platform for good grip on all types of surfaces

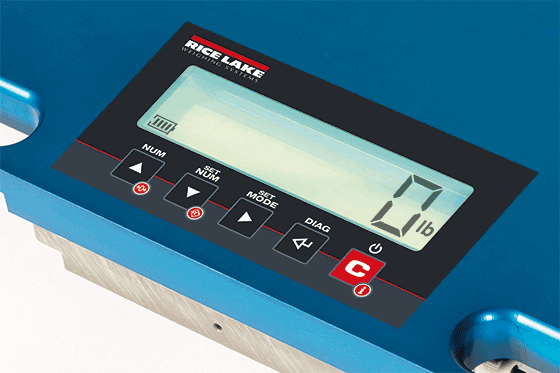

  • Built-in indicator on each scale with 1in character display
  • IP67 rating
  • Cover plate protects built-in indicator

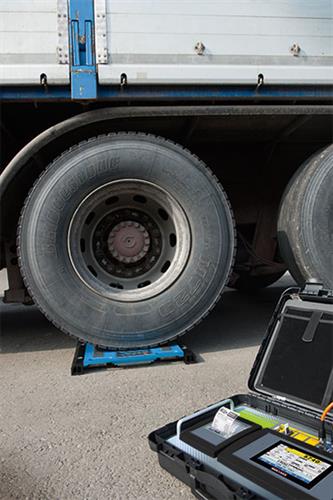

  • header”>Optional remote indicator with integrated printer in carrying case:

  • Carrying case: 1 ft x 1 ft 6 in x 7 in (325 mm x 460 mm x 170 mm)
  • Backlit graphic display with touchscreen technology
  • Internal battery with 10 hours of battery life
  • Real-time clock
  • Permanent data storage
  • Slot for built-in micro SD
  • 24-bit A/D converter, up to 2,300 conversions per second
  • One RS-232 serial port
  • Thermal printer
  • ABS transport case


  • Construction: Aluminum alloy
  • Display: 1 in character display on each scale.
  • Platform Dimensions (l x w x h):
    • Load Ranger RF-MD: 1 ft 10 in x 1 ft 8 in x 2.28 in. (564mm x 511mm x 58mm)
    • Load Ranger RF-WD: 2 ft 6 in x 1 ft 10 in x 2.28 in. (750mm x 561mm x 58mm)
    • Load Ranger RF-XWD: 3 ft 1 in x 2 ft x 2.28 in. (950mm x 611mm x 59mm)
  • Loading Surface (l x w):
    • Load Ranger RF-MD: 1 ft 10 in x 1 ft 4 in (564mm x 400mm)
    • Load Ranger RF-WD: 2 ft 6 in x 1 ft 6 in (750mm x 450mm)
    • Load Ranger RF-XWD: 3 ft 1 in x 1 ft 8 in (950mm x 500mm)
  • System Accuracy: 0.05% of rated capacity
  • Power Supply: Rechargeable battery. Approximately 40 hours of battery life.
  • Operating Temperature: 14?F to 104?F (-10?C to 40?C)
  • Storage Temperature: -4?F to 140?F (-20?C to 60?C)
  • Warranty:Two-year limited warranty
