RoughDeck® AX Axle Scale

$0.00

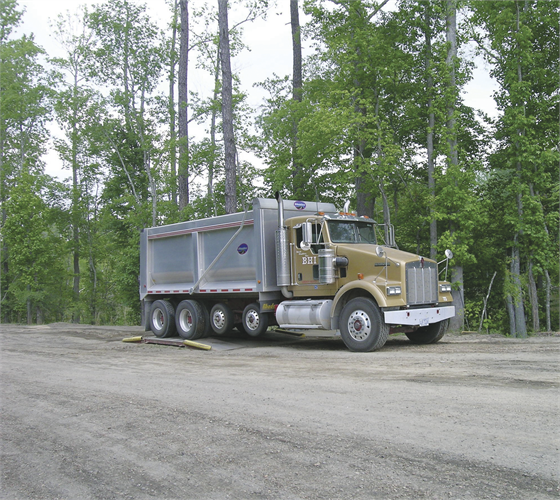

Maintain accuracy and accountability even in temporary site applications with the RoughDeck® AX. This portable, economical option for vehicle and truck weighing is built tough, using time-tested Rice Lake construction. The RoughDeck AX provides a durable and consistent scale for monitoring overloaded and underloaded axle weight.
The RoughDeck AX system includes four on/off ramps and two treaded top plate platforms. Two tandem scale platforms provide axle capacity measurement up to 60,000 pounds. Combined with the TuffSeal® signal trim junction box and SURVIVOR EL147HE cable, the RoughDeck AX system is the ideal portable solution for onsite vehicle weighing.

Download product PDF

Features

System

  • Two platforms with anchor brackets and four on/off ramps with anchor tabs (anchor bolts not included)

Scale

  • (W x L x H): 32 x 84 x 6in
  • Axle capacity – tandem platforms – 60,000lb (two scales 30,000lb each)
  • Includes (2) 3/4-10NC eye bolts
  • Contains four environmentally sealed, IP67 20,000lb single-ended shear beam load cells per platform
  • Treaded top plate with side access junction box
  • JB4SS TuffSeal® signal trim junction box
  • Top access foot adjustment holes
  • Carbon steel captured ball feet
  • 20ft SURVIVOR® EL147HE cable
  • Non-Legal for Trade

Specifications

  • End Loading Capacity: 133% full scale at 30,000 lb
  • Warranty: Weldment five years, load cells two years, all other
    components one-year limited warranty
