Features

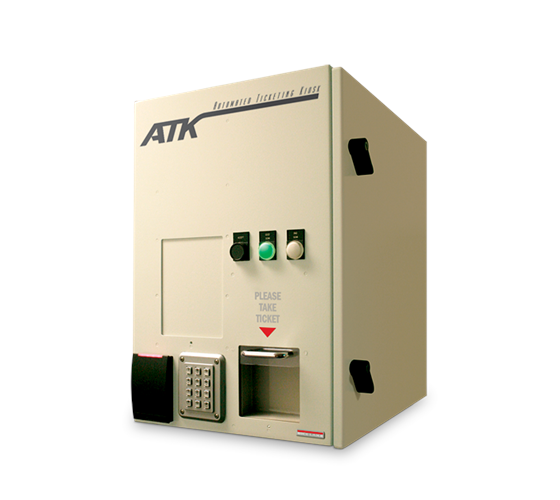

Direct Thermal Printer Kiosk
- Epson EU-T482 direct thermal tape printer
- Slide door access to ticket
- 8 in paper roll
Printer Kiosk with Intercom
- Intercom substation AI Phone
Printer Kiosk with Ethernet Intercom?
- Intercom substation AI Phone Ethernet TCP/I
Thermal-transfer Printer Kiosk
- Thermal transfer ticket printer kiosk
- Painted mild steel enclosure
- Slide door access to ticket
- Zinc-plated 3/4-inch NPT conduit hubs
- Additional options available upon request
*For the most recent user manual and driver install information about the printer used in Rice Lake?s ATK printer kiosk, please visit the vendor?s website at?CUSTOM Kiosk Printers
Specifications
Direct Thermal Printer Kiosk Specifications
Line Voltages:
115 or 230 VAC
Frequency:
50 or 60 Hz
Power Consumption:
0.5 amps (depending on options)
Fusing:
3.15 amps circuit breaker
Humidity:
0-95% relative humidity
Rating/Material:
NEMA Type 1
IP10
Printer Communication Ports:
RS-232 or Ethernet
Storage Temperature:
14 to 158? F (-10 to 70? C)
Current Supported Riser Plates:
Zebra 140XiIIIPlus
Zebra 105SL
Zebra R110Xi
Zebra Z4Mplus
Zebra 2746e
Datamax-O?Neil I-4208
Datamax-O?Neil 4206
Datamax-O?Neil I-4308
Datamax-O?Neil I-4210
Datamax-O?Neil I-4212
Intermec 3400e
Intermec 4440
Warranty:
Two-year limited warranty
Thermal-transfer Printer Kiosk Specifications
Line Voltages:
115 or 230 VAC
Frequency:
50 or 60 Hz
Power Consumption:
0.5 amps (depending on options)
Fusing:
6 amp circuit breaker
Humidity:
0-95% relative humidity
Rating/Material:
NEMA Type 1
IP10
Printer Serial Ports:
RS-232
Ethernet (optional)
Storage Temperature:
14? F to 158? F (-10? C to 70? C)
Current Supported Riser Plates:
Zebra 140XiIIIPlus
Zebra 105SL
Zebra R110Xi
Zebra Z4Mplus
Zebra 2746e
Datamax-O?Neil I-4208
Datamax-O?Neil 4206
Datamax-O?Neil I-4308
Datamax-O?Neil I-4210
Datamax-O?Neil I-4212
Intermec 3400e
Intermec 4440
Warranty:
Two-year limited warranty
Options
119693 Heater, 200W Sub-Assembly 120VAC w/ fan & thermostat. Includes Wiring Drawings And Mounting Hardware.
119761 Ethernet Unmanaged Switch Requires 12 To 36 VDC ESW105, Industrial 5 port
119946 ATS Printer OPT,Ethernet UDS-1100 Converter with cable and mounting hardware for Kiosk Printer. 40 inch, 28 pin M to 9 pin M
120040 ATS Printer OPT,Ethernet UDS-2100 Converter with cable and mounting hardware for kiosk printer. Blunt end.
93463 Riserplate, Printer Datamax I-4208, I-4308 & I-4212. (Comes w/ Rubber Feet & Nuts.) I-Class Printers
93468 Riserplate, Printer Intermec 3400D
176452 Reader,HID Smart Card Assembly Includes Wiegand to RS232 Converter and Mounting Hardware (Replacement for part 85901)
131143 Printer,Label I-4212e DT RS-232, Parallel, & USB, 115VAC, US Power Cord, CE Mark L
64884 Printer OPT,Thermal Trans Standard Thermal Transfer Option (Coated Side In) I-Class
131150 Ethernet,LAN I-4212e Wired 10/100
53918 Printer OPT,Standard Industrial Cutter Kit I Class
109298 Tag,Direct Thermal 4 Inch DTT x Continuous, 7.2 mil, 3IN Core, 8IN OD 480 FT Roll Wound Out
158974 Audio Amplifier Intercom audio amplifier to work with speaker horn
105445 Paper, Roll 80mm Wide (3.1 in) Thermal 690ft Per Roll EU-T400 86um (3.3 mil) Thickness, Coated Side Wound Out 8 Rolls per Case, Sold by the Roll, For 6 inch OD Max Printers, 1 inch Core ID
105446 Paper,Roll 80mm Wide (3.1 in) Thermal 1268ft Per Roll EU-T400 86um (3.3 mil) Thickness Coated Side Wound Out, 8 Rolls per Case, Sold by the Roll, For 8 inch OD Max Printers, 1 inch Core ID
89190 Paper Tag TTT 4.00 Wide Continuous Thermal Transfer Tag 7.5pt, 7.0 Mil 3 in Core 400FT Roll No. 2 Unwind
34056 Ribbon,Thermal Transfer 4.00 Maxwax GPR Plus Black 1181 Feet Long 1 inch Core
