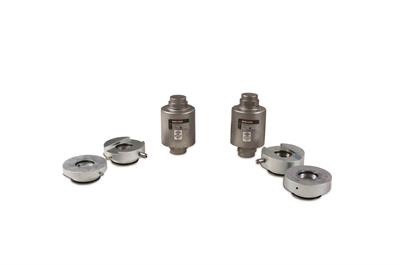

Rice Lake RL70510 and RL80453 Stainless Steel, Rocker Load Cells

$0.00

RL75010 and and RL80453 stainless steel rocker cells are replacement load cells for the Fairbanks’ 75010 and 80453 rocker cells found in many truck scales.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/v

Output Resistance:
1,000 (? 2) ohm

Input Resistance:
1,150 (? 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated Range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
200% full scale

Rated Excitation:
5-10 VDC (15 V max)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Hermetically sealed, IP69K

Cable Length:
15 ft (4.5 m) stainless overbraid

Cable Diameter:
0.200 overbraid cable

Cable Color Code:
Green ………………..+ Excitation
Black ………………..? Excitation
White ………………..+ Signal
Red ………………….? Signal
Yellow?……………….Shield

Warranty:
Two-year limited warranty

Approvals:
NTEP

Models

169363 Load Cell,CSR RL70510-30t 30t 15ft stainless overbraid 2mv/v 1000 Ohm EW SST HS NTEP IIIL 10M IP69K
169365 Load Cell, CSR RL80453 100k 15ft stainless overbraid 2mv/v 1000 Ohm EW SST HS NTEP IIIL 10M IP69K
