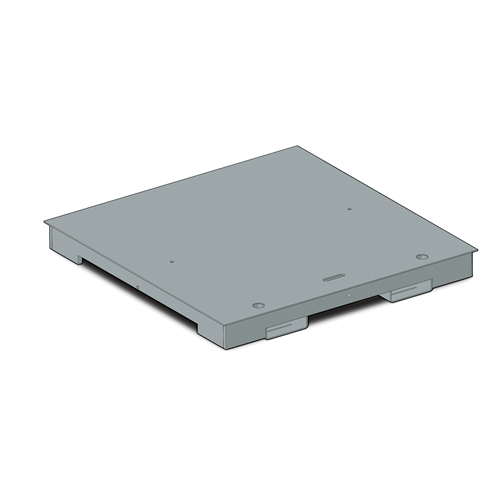

RoughDeck® QC-XP Quick Clean Extreme Portable Solid Base Plate Floor Scale

$0.00

The RoughDeck QC-XP is a quick-clean, washdown, stainless steel floor scale with a solid plate base and forklift channels for portability. The RoughDeck QC-XP is ideal for easy cleaning in environments requiring strict sanitation.

Download product PDF
Categories: ,

Features

  • Designed with forklift pockets, allowing the scale to be portable
  • Rugged washdown design, rigid 304 stainless steel frame constructed with continuous welds
  • Meets HACCP requirements
  • Manual drop-in-place safety bars
  • Four stainless steel, hermetically sealed, IP69K shear beam load cells with 30 ft cables
  • 20 ft of SURVIVOR® EL147HE hostile environment cable for connecting junction box to indicator
  • Internally mounted junction box can be mounted up to 15 ft away
  • 1/4 in top plate
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Top plate opens 75 degrees
  • Tool-less top plate lock downs
  • Top plate available with a smooth deck or diamond treadplate
  • Two 1/2-20 NF threaded eyebolt holes for lifting scale into pit frame

Specifications

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Scale Weldment:
AISI304L, glass bead blasted for even appearance

 Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Continuous

Threaded Eyebolt:
Two 1/2-20 NF threaded eyebolt holes for lifting scale into pit frame

 Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
cFMus

Options

193283 Scale,Roughdeck QC-XP 4x4HPQC-XP-5K 4ftx4ftx7 5000lb SMOOTH TOP PLATE WITH FORKLIFT CHANNEL OPTION, INTERNAL MOUNT JBOX
193284 Scale,Roughdeck QC-XP 4x4HPQC-XP-10K 4ftx4ftx7 10,000lb SMOOTH TOP PLATE WITH FORKLIFT CHANNEL OPTION, INTERNAL MOUNT JBOX
193287 Scale,Roughdeck QC-XP 4x4HPQC-XP-5K 4ftx4ftx7 5000lb DIAMOND TOP PLATE WITH FORKLIFT CHANNEL OPTION, INTERNAL MOUNT JBOX
193288 Scale,Roughdeck QC-XP 4x4HPQC-XP-10K 4ftx4ftx7 10,000lb DIAMOND TOP PLATE WITH FORKLIFT CHANNEL OPTION, INTERNAL MOUNT JBOX
