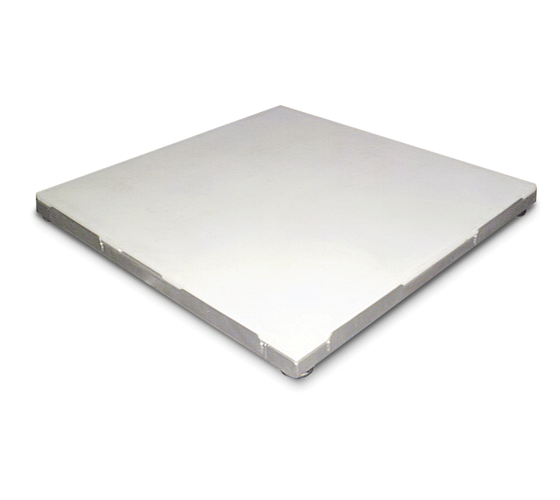

RoughDeck SD Sanitary Deck Floor Scale

$0.00

  • Rugged washdown design
  • 304 stainless steel construction
  • Rigid stainless steel tube frame
  • Four stainless steel, welded seal, shear-beam load cells
  • Load cells protected on all four sides
  • 20 ft (6 m) of SURVIVOR EL147HE hostile environment load cell cable
  • Remote TuffSeal JB4SS stainless steel NEMA Type 4X junction box
  • Four adjustable stainless steel SUREFOOT? support feet
  • Removable polyethylene deck (deck weight: 80 lb (36.6 kg) on 4 ft x 4 ft size)
  • Side brackets to hold deck during washdown
Download product PDF
Categories: , , ,

Features

? Rugged washdown design
? 304 stainless steel construction
? Rigid stainless steel tube frame
? Four stainless steel, welded seal, shear-beam load cells
? Load cells protected on all four sides
? 20ft (6m) of SURVIVOR EL147HE hostile environment load cell cable
? Remote TuffSeal JB4SS stainless steel NEMA Type 4X junction box
? Four adjustable stainless steel SUREFOOT? support feet
? Removable polyethylene deck (deck weight: 80lb (36.6kg) on 4ft x 4ft size)
? Side brackets to hold deck during washdown

Specifications

End Load Capacity:
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb
Cable Length:
20 ft (6.1 m) (for connecting junction box to indicator)

Remote Junction Box:
Stainless steel enclosure can be located up to 10 ft away from scale
Warranty:
RoughDeck SD weldment and load cells two years, all other components one year

Approvals:
NTEP CC 92-01, Class III 5,000 d

Options

28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 320IS, 320IS W/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST
NA Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel cFMusus approved load cells and hardware

Models

50385 Scale,Floor Roughdeck SD 2.5×2.5HPSD-2K 2-1/2ftx2-1/2ftx4-3/8 2000lb 20ft NTEP III SST HE Plastic
50386 Scale,Floor Roughdeck SD 3x3HPSD-2K 3ftx3ftx4-3/8 2000lb 20ft NTEP III SST HE Plastic
50387 Scale,Floor Roughdeck SD 4x4HPSD-2K 4ftx4ftx4-3/8 2000lb 20ft NTEP III SST HE Plastic
50388 Scale,Floor Roughdeck SD 4x4HPSD-5K 4ftx4ftx4-3/8 5000lb 20ft NTEP III SST HE Plastic
50389 Scale,Floor Roughdeck SD 4x4HPSD-10K 4ftx4ftx5-3/8 10,000lb 20ft NTEP III SST HE Plastic
50390 Scale,Floor Roughdeck SD 4x5HPSD-2K 4ftx5ftx4-3/8 2000lb 20ft NTEP III SST HE Plastic
50391 Scale,Floor Roughdeck SD 4x5HPSD-5K 4ftx5ftx5-3/8 5000lb 20ft NTEP III SST HE Plastic
50392 Scale,Floor Roughdeck SD 4x5HPSD-10K 4ftx5ftx5-3/8 10,000lb 20ft NTEP III SST HE Plastic
50393 Scale,Floor Roughdeck SD 4x6HPSD-2K 4ftx6ftx5-3/8 2000lb 20ft NTEP III SST HE Plastic
50394 Scale,Floor Roughdeck SD 4x6HPSD-5K 4ftx6ftx5-3/8 5000lb 20ft NTEP III SST HE Plastic
50395 Scale,Floor Roughdeck SD 4x6HPSD-10K 4ftx6ftx6-3/8 10,000lb 20ft NTEP III SST HE Plastic
50396 Scale,Floor Roughdeck SD 5x5HPSD-2K 5ftx5ftx5-3/8 2000lb 20ft NTEP III SST HE Plastic
50397 Scale,Floor Roughdeck SD 5x5HPSD-5K 5ftx5ftx5-3/8 5000lb 20ft NTEP III SST HE Plastic
50398 Scale,Floor Roughdeck SD 5x5HPSD-10K 5ftx5ftx5-3/8 10,000lb 20ft NTEP III SST HE Plastic
50399 Scale,Floor Roughdeck SD 5x7HPSD-2K 5ftx7ftx6-3/8 2000lb 20ft NTEP III SST HE Plastic
50400 Scale,Floor Roughdeck SD 5x7HPSD-5K 5ftx7ftx6-3/8 5000lb 20ft NTEP III SST HE Plastic
50401 Scale,Floor Roughdeck SD 5x7HPSD-10K 5ftx7ftx6-3/8 10,000lb 20ft NTEP III SST HE Plastic
