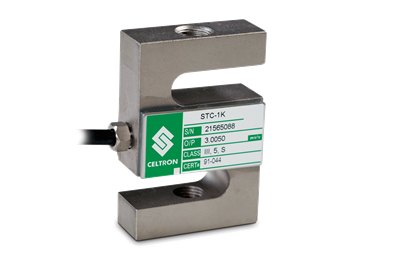

VPG Celtron STC Alloy Steel, S-Beam Load Cell
$0.00
The VPG Celtron STC alloy steel, S-beam load cell is ideally suited for batching and filling and hopper/tank weighing.
Download product PDF
Specifications
Full Scale Output:
3.0 mV/V nominal
Output Resistance:
350 (? 3) ohm
Input Resistance:
385 (? 5) ohm
Material/Finish:
High-alloy steel, nickel plated
Temperature:
Compensated range
14?F to 104?F (-10?C to 40?C)
Operating range
0? F to 150? F (-18? C to 65? C)
Safe Overload:
150% full scale
Rated Excitation:
5-10 VDC (15 V maximum)
Non-Repeatability:
0.01% full scale
Combined Error:
0.02% full scale
Insulation Resistance:
5,000 megohms
Seal Type:
Environmentally sealed, IP67
Cable Length:
20 ft (6.1 m)
Cable Diameter:
0.200 polyurethane jacket (250 lb – 20,000 lb)
0.305 polyurethane jacket (40,000 lb)
Cable Color Code:
Red ………………….+ Excitation
Black ………………..? Excitation
Green ……………….+ Signal
White …………………? Signal
Bare ………………….Shield
Warranty:
One-year limited warranty
Approvals:
FM
NTEP
Models
| 30047 |
Load Cell,SBM STC-250 250 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
?
|
|
| 30051 |
Load Cell,SBM STC-500 500 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30054 |
Load Cell,SBM STC-750 750 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30067 |
Load Cell,SBM STC-1K 1,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30069 |
Load Cell,SBM STC-1.5K 1,500 lb 20ft 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30072 |
Load Cell,SBM STC-2K 2,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30073 |
Load Cell,SBM STC-2.5K 2,500 lb 20ft 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30074 |
Load Cell,SBM STC-3K 3,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30076 |
Load Cell,SBM STC-5K 5,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30077 |
Load Cell,SBM STC-10LE 10,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30078 |
Load Cell,SBM STC-15K 15,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
|
|
| 30079 |
Load Cell,SBM STC-20K 20,000 lb 20ft Celtron 3mV/V 350 OHM WW NTEP IIIL 10 S IP67 FM |
