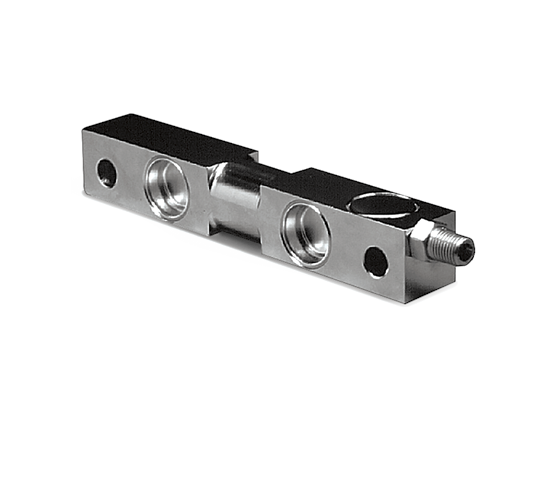

VPG Sensortronics 65016W Stainless Steel, Double-Ended Beam Load Cell

$0.00

Offered in stainless steel and with welded-seal. Designed for center loading compatibility with RL1600 tank weighing assemblies. Capacities range from 1,000 lb to 75,000 lb (453.6 kg to 34,019.4 kg). Complete with 25 ft (7.6 m) of load cell cable.

Download product PDF
Categories: ,

Models

36295 Load Cell,DEB 65016W-1k- 0104W 1,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36296 Load Cell,DEB 65016W- 1.5k-0104W 1,500lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36297 Load Cell,DEB 65016W-2k- 0104W 2,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36298 Load Cell,DEB 65016W- 2.5k-0104W 2,500lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36299 Load Cell,DEB 65016W-5k- 0104W 5,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36300 Load Cell,DEB 65016W-10K- 0104W 10,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36301 Load Cell,DEB 65016W-15k- 0104W 15,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36302 Load Cell,DEB 65016W-20k- 0104W 20,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36303 Load Cell,DEB 65016W-25k- 0104W 25,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36304 Load Cell,DEB 65016W-50K- 0104W 50,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SST WS IP67
36305 Load Cell,DEB 65016W-75k- 0104W 75,000lb 25ft SENSTRS 3mV/V 700 OHM WW FM SWT WS IP67
